Flash Memory

This diagnosis displays directly from the System Links screen by selecting the Flash Memory icon.

This diagnosis checks the SD module status.

Insert: Displays the result of the insert status about the SD module (OK; Inserted, NG; Not Inserted).
Access: Displays the result of the access to the SD module (OK/NG). If NG, replace the SD module (see SD MODULE REMOVAL/INSTALLATION ), and recheck.

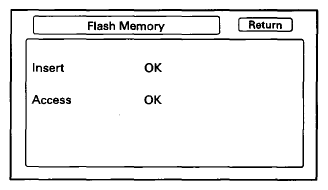

Fig 1: Navigation Display - Flash Memory
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ERROR MESSAGE TABLE

Screen Error Message	Solution
The navigation system is unable to start due to excessive heat. The system will start after the system cools.	This message appears briefly when the navigation ECU temperature is too high, and then turn the ignition switch to LOCK (0) until the temperature cools down. The system turns back on when the audio-navigation unit cools down.
The display temperature is too high! For protection. The display will shut down.	This message appears briefly when the display temperature is too high, and then the display turns off until the temperature cools down. The system turns back on when the display cools down.
The navigation system cannot access the memory module. Please turn the ignition off, then turn it back on. If the problem continues, visit your dealer when convenient.	This message appears when the system detects the SD module is not connected or there is an SD module connecting error. Check any official Honda service website for more service information about the navigation system.
The navigation system cannot access the memory module because it is not authorized to work with this system. Please insert the correct memory module or visit your dealer when convenient.	This message appears when the system detects a SD module that is not approved. Make sure the SD module is a genuine part. If the audio-navigation unit is replaced, make sure the SD module is transferred to the new unit. The SD module may be damaged or was not properly mated to the audio-navigation unit. Check any official Honda service website for more service information about the navigation system.
