Audio Unit Connector B (20P)

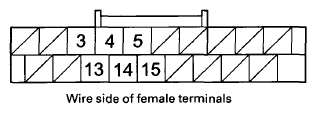

Fig 1: Identifying Audio Unit Connector B (20P)
G08094899Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire Color Terminal Name Description
B3 BRN AUX S GND Ground for sound signal from auxiliary jack assembly
B4 GRY(1) AUX SH GND Shield for terminals No. 3, No. 13, and No. 14
B5 WHT AUX GND Ground for auxiliary jack assembly
B13 YEL AUX LCH Inputs sound signal from auxiliary jack assembly
B14 ORN AUX RCH Inputs sound signal from auxiliary jack assembly
B15 PUR AUX DET Detects connection signal for auxiliary jack assembly
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
