Gearshift Mechanism Replacement

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.

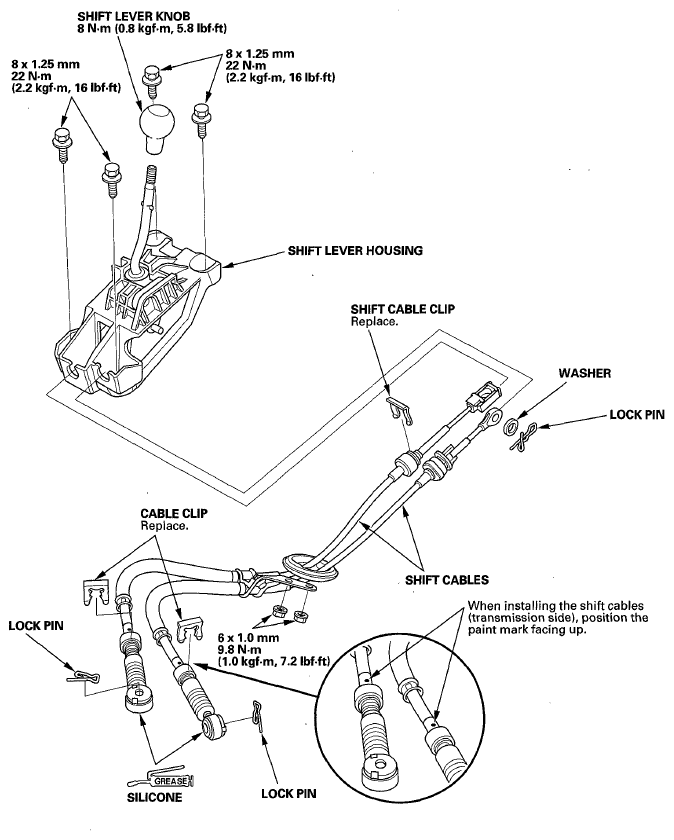

Fig 1: Identifying Gearshift Mechanism Replacement Components With Torque Specifications
G05953484Courtesy of AMERICAN HONDA MOTOR CO., INC.
