A/C Line Replacement

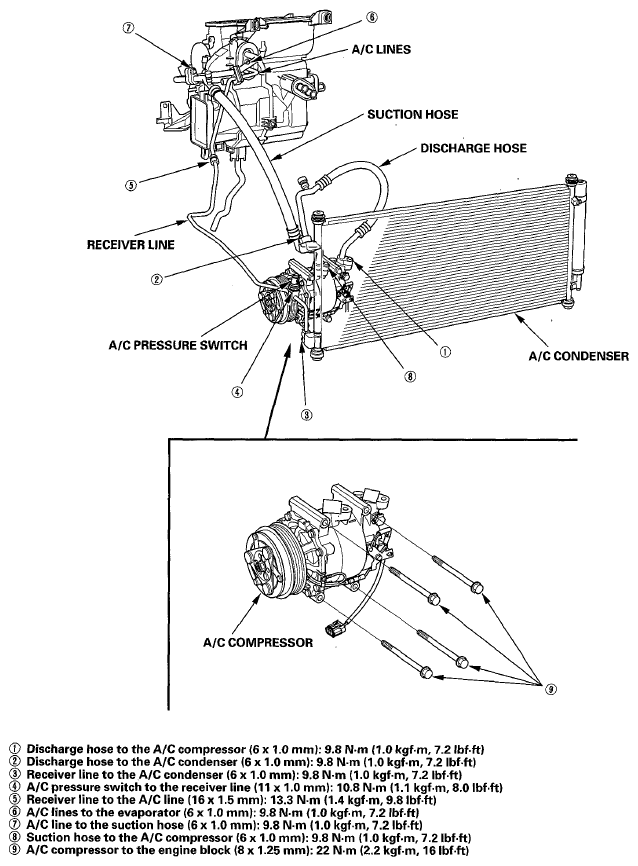

Fig 1: Identifying A/C Line Replacement Components With Torque Specifications

G05959792

Courtesy of AMERICAN HONDA MOTOR CO., INC.
