Fit Base, Standard Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Mirrors
>>
Power Mirrors
>>
Circuit Diagram
Circuit Diagram

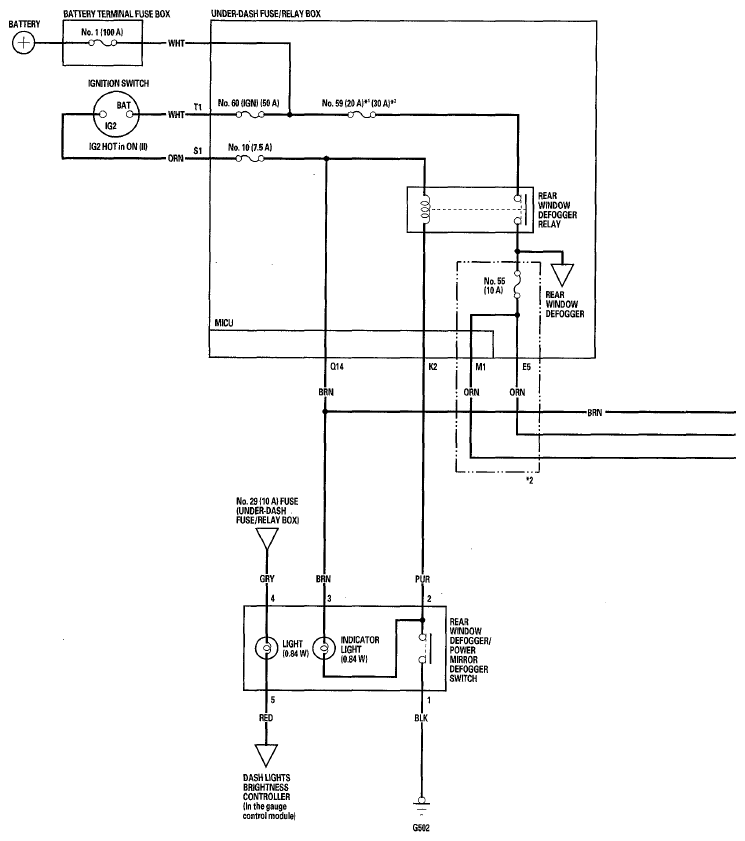

Fig 1: Identifying Power Mirrors - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

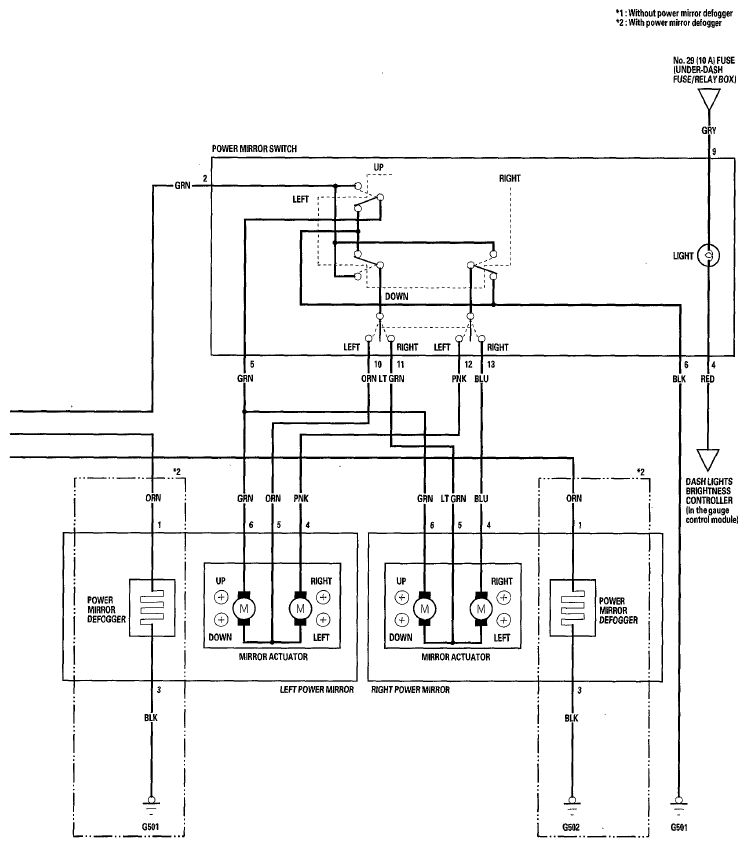

Fig 2: Identifying Power Mirrors - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
