Transmission Fluid Pressure Switch Replacement

  1. Remove the transmission fluid pressure switch A (2nd clutch) (A).

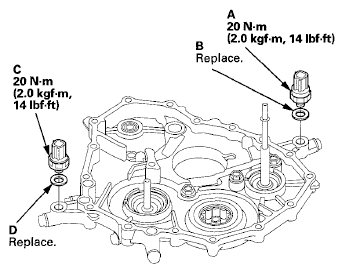

    Fig 1: Removing Transmission Fluid Pressure Switch A (2nd Clutch) With Torque Specifications
    G06768612Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Make sure there is no water, oil, dust, or foreign particles inside the connector.
  3. Install the new transmission fluid pressure switch A (2nd clutch) and a new sealing washer (B), and tighten the metal part of the switch.
  4. Remove the transmission fluid pressure switch B (3rd clutch) (C).
  5. Make sure there is no water, oil, dust, or foreign particles inside the connector.
  6. Install the new tansmission fluid pressure switch B (3rd clutch) and a new sealing washer (D), and tighten the metal part of the switch.
