Selector Control Shaft Bearing Replacement

Special Tools Required

• Driver Handle, 15 x 135L 07749-0010000
• Attachment, 22 x 24 mm 07746-0010800

1. Remove the oil seal from the end cover.
   Fig 1: Removing Oil Seal From End Cover

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the control shaft bearing from the end cover.
   Fig 2: Removing Control Shaft Bearing From End Cover

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the new bearing flush with the end cover using the driver handle and the attachment (22 x 24 mm).
   Fig 3: Installing New Bearing Flush With End Cover Using Driver Handle And Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the new oil seal flush with the end cover using the driver handle and the attachment (22 x 24 mm).

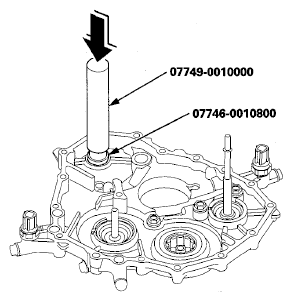

   Fig 4: Installing New Oil Seal Flush With End Cover Using Driver Handle And Attachment
