End Cover Installation

Special Tools Required

• Mainshaft Holder 07GAB-PF50101
• Gear Installer Set 070AC-XFD0100

1. Install the special tool onto the mainshaft.
   Fig 1: Identifying Special Tool On Mainshaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Lubricate the following parts with ATF:
   • Splines and threads of the mainshaft.
   • Splines of the mainshaft idler gear.
   • Old conical spring washer and old locknut.
3. Install the mainshaft idler gear (A), the old conical spring washer (B), and the old locknut (C) on the mainshaft (D), and tighten the locknut to 216 N.m (22.0 kgf.m, 159 lbf.ft).
   NOTE:

   • Do not tap the idler gear to install.
   • Use a torque wrench to tighten the locknut. Do not use an impact wrench.

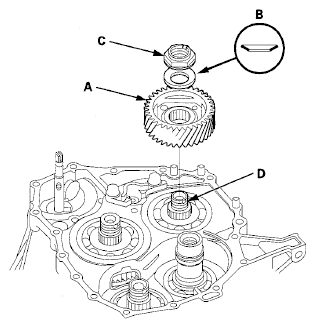

   Fig 2: Installing Mainshaft Idler Gear, Old Conical Spring Washer, And Old Locknut On Mainshaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Lubricate the following parts with ATF:
   • Splines and threads of the secondary shaft and idler gear shaft.
   • Splines of the secondary shaft idler gear.
   • Old conical spring washer and old locknut.
5. Install the secondary shaft idler gear (A) on the secondary shaft (B), and install the idler gear shaft idler gear (C) on the idler gear shaft (D).

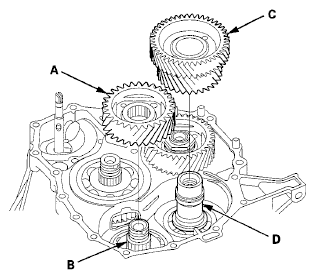

   Fig 3: Installing Secondary Shaft Idler Gear On Secondary Shaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

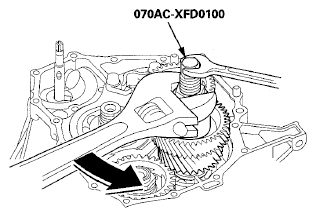

6. Set the special tool on the idler gear shaft and idler gear, and tighten the installer nut to install the idler gear part-way.
   NOTE: The installer nut has left-hand threads.
   Fig 4: Identifying Special Tool On Idler Gear Shaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Install the old conical spring washer (A) and the old locknut (B) on the secondary shaft (C), and tighten the lock nut to 226 N.m (23.0 kgf.m, 166 lbf.ft).
   NOTE:

   • Do not tap the idler gear to install.
   • Use a torque wrench to tighten the locknut. Do not use an impact wrench.
   • The secondary shaft locknut has left-hand threads.

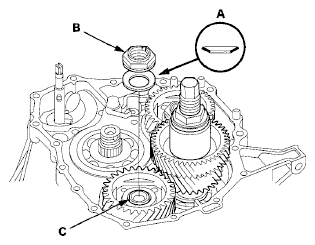

   Fig 5: Installing Old Conical Spring Washer And Old Locknut On Secondary Shaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Retighten the installer nut to seat the idler gear in the idler gear shaft until it stops. Remove the special tool from the idler gear shaft.
   Fig 6: Identifying Installer Nut

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Install the new snap ring (A) on the idler gear shaft (B), and verify that the snap ring is seated securely into the groove.

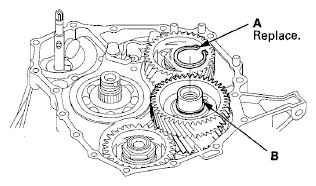

   Fig 7: Installing New Snap Ring On Idler Gear Shaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

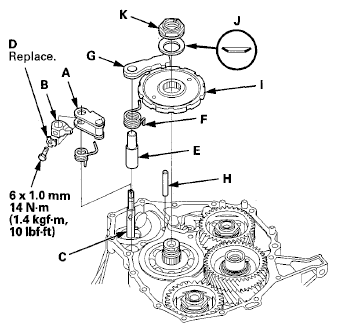

10. Install the park lever (A) and the park lever stop (B) on the selector control shaft (C), then install the lock bolt and the new lock washer (D). Do not bend the lock tab of the lock washer until step 23.
    Fig 8: Installing Park Lever And Park Lever Stop On Selector Control Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Install the park pawl shaft (E), the park pawl spring (F), the park pawl (G), and the stop shaft (H) on the transmission housing.
12. Lubricate the following parts with ATF:
    • Threads and splines of the countershaft.
    • Old conical spring washer and old locknut.
    • Areas where the park gear contacts the conical spring washer.
13. Install the park gear (I), the old conical spring washer (J), and the old locknut (K) on the countershaft.
14. Lift the park pawl up, and engage it with the park gear, then tighten the locknut to 226 N.m (23.0 kgf.m, 166 lbf.ft).
    NOTE:

    • Do not tap the park gear to install.
    • Use a torque wrench to tighten the locknut. Do not use an impact wrench.
    • The countershaft locknut has left-hand threads.
15. Remove the locknuts and the conical spring washers from the mainshaft, the countershaft, and the secondary shaft.
16. Lubricate the threads of the shafts, the new locknuts, and the new conical spring washers with ATF.

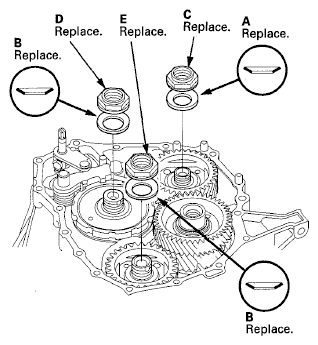

17. Install the new conical spring washers (A) (B) in the direction shown, and install the new mainshaft locknut (C), the new countershaft locknut (D), and the new secondary shaft locknut (E).
    Fig 9: Installing New Mainshaft Locknut, New Countershaft Locknut

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
18. Tighten the countershaft locknut and the secondary shaft locknut to 167 N.m (17.0 kgf.m, 23 lbf.ft), and tighten the mainshaft locknut to 155 N.m (15.8 kgf.m, 114 lbf.ft).
    NOTE:

    • Be sure to install the conical spring washers in the direction shown.
    • Use a torque wrench to tighten the locknuts. Do not use an impact wrench.
    • Countershaft and secondary shaft locknuts have left-hand threads.
19. Remove the special tool from the mainshaft.

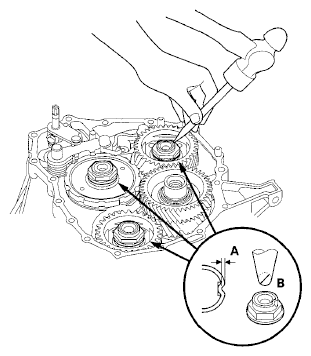

20. Stake the locknuts into the shafts to a depth (A) of 0.7-1.3 mm (0.03-0.05 in) using a 3.5 mm punch (B).
    Fig 10: Staking Locknuts Into Shafts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
21. Set the park pawl (A) in the P position, then verify that the park pawl engages with the park gear (B).

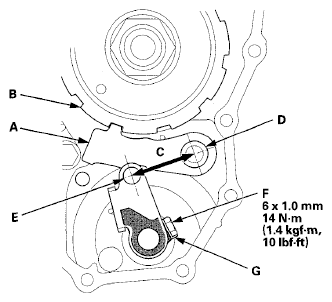

    Fig 11: Setting Park Pawl In P Position

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
22. If the park pawl does not engage fully, check center-to-center distance (C) between the pawl shaft (D) and the park lever roller pin (E) (see PARK LEVER STOP INSPECTION AND ADJUSTMENT ).
23. Tighten the lock bolt (F), and bend the lock tab of the lock washer (G) against the bolt head.
24. Install the ATF lubrication pipe (A) into the idler gear shaft (B).

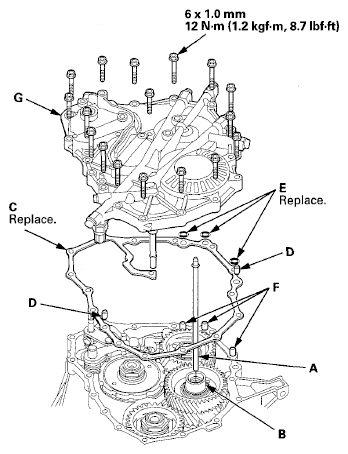

    Fig 12: Installing Atf Lubrication Pipe Into Idler Gear Shaft With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
25. Install the new gasket (C) on the transmission housing, and install the two dowel pins (D) and new O-rings (E) over the top of the ATF feed pipes (F).
26. Install the end cover (G), and tighten the 17 bolts.
27. Using the selector control shaft end on the torque converter housing side, turn the control shaft (A) fully clockwise (view from end cover) to the P position. Turn the control shaft back two click-stopped positions so that it is in the N position.
    NOTE: Do not squeeze the end of the selector control shaft tips together when turning the shaft. If the control shaft tips are squeezed together it will cause a faulty signal or position due to play between the selector control shaft and the switch.
    Fig 13: Identifying Selector Control Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
28. Align the cutouts (A) on the rotary-frame with the neutral positioning cutouts (B) on the transmission range switch (C), then put a 2.0 mm (0.08 in) feeler gauge blade (D) in the cutouts to hold the switch in the N position.
    NOTE: Be sure to use a 2.0 mm (0.08 in) blade or equivalent to hold the switch in the N position.
    Fig 14: Aligning Cutouts On Rotary-Frame With Neutral Positioning Cutouts On Transmission Range Switch

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

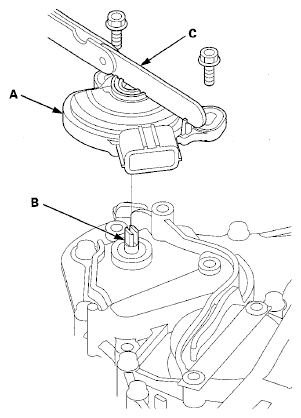

29. Install the transmission range switch (A) gently on the selector control shaft (B) while holding it in the N position with the 2.0 mm (0.08 in) blade (C).
    Fig 15: Installing Transmission Range Switch Gently On Selector Control Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
30. Tighten the bolts on the transmission range switch while you continue to hold it in the N position. Do not move the transmission range switch while tightening the bolts. Remove the feeler gauge.
    Fig 16: Identifying Bolts On Transmission Range Switch

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
31. Install the harness clamp bracket (A) on the end cover (B).

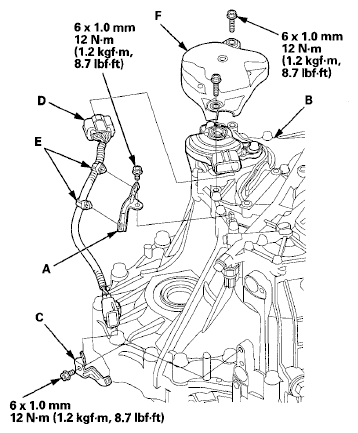

    Fig 17: Installing Harness Clamp Bracket On End Cover With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
32. Install the connector bracket (C) on the transmission housing.
33. Connect the transmission range switch connector (D) securely, then install the harness clamps (E) on the clamp bracket.
34. Install the transmission range switch cover (F).
35. Install a new O-ring (A) on the input shaft (mainshaft) speed sensor (B), then install the input shaft (mainshaft) speed sensor.

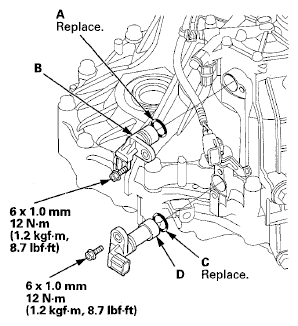

    Fig 18: Installing New O-Ring On Input Shaft (Mainshaft) Speed Sensor With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
36. Install a new O-ring (C) on the output shaft (countershaft) speed sensor (D), then install the output shaft (countershaft) speed sensor.
37. Install a new gasket (B) on the transmission housing, and install the ATF pipe (C) and the ATF joint pipes (D).
    Fig 19: Installing Gasket On Transmission Housing With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

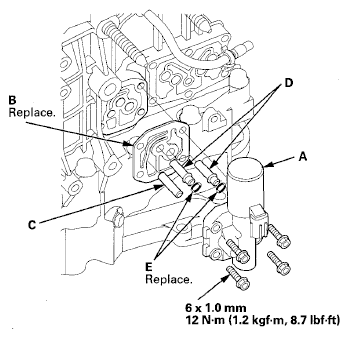

38. Install new O-rings (E) over the ATF joint pipes, and install the A/T clutch pressure control solenoid valve A.

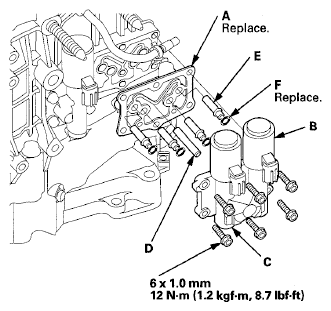

39. Install a new gasket (A) with the blue side facing the transmission housing and the white side facing the A/T clutch pressure control solenoid valve body.
    Fig 20: Installing New Gasket With Blue Side Facing Transmission Housing With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
40. Install the ATF pipe (D) and the ATF joint pipes (E), and install the new O-rings (F) over the ATF joint pipes.
41. Install A/T clutch pressure control solenoid valve B and C.

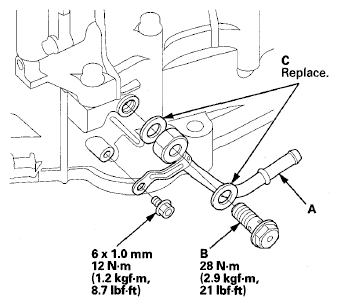

42. Install the ATF outlet line (A) on the torque converter housing, and secure it with the line bolt (B) and new sealing washers (C).
    Fig 21: Installing Atf Outlet Line On Torque Converter Housing With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
43. Secure the ATF outlet line with the bracket bolt.

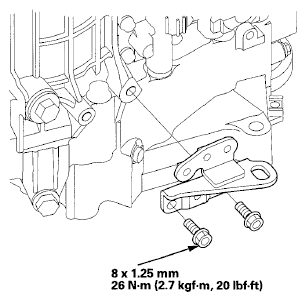

44. Install the transmission hanger.
    Fig 22: Installing Transmission Hanger With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
45. Install the breather hose clamp bracket, and install the clamp on the bracket.
    Fig 23: Installing Breather Hose Clamp Bracket With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

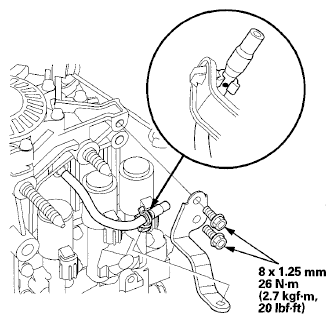

46. Install the ATF filter bracket (A).
    Fig 24: Installing ATF Filter Bracket With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

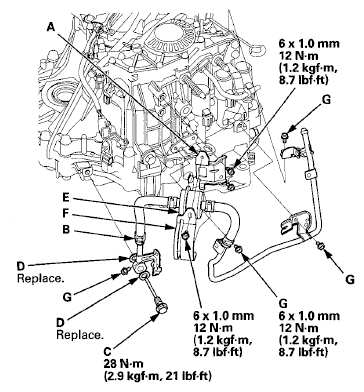

47. Install the ATF inlet line and hose (B) on the torque converter housing, and secure it with the line bolt (C) and new sealing washers (D).
48. Put the ATF filter (E) on its bracket, and secure with the holder (F) and the bolt.
49. Secure the inlet line with the bolts (G) on the transmission.
