ATF Feed Pipe Replacement

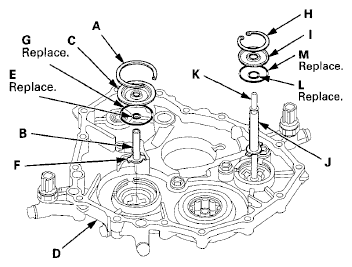

- Remove the snap ring (A), the 3rd clutch feed pipe (B), and the feed pipe flange (C) from the end cover (D).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install a new O-ring (E) over the 3rd clutch feed pipe.
- Install the 3rd clutch feed pipe in the end cover by aligning the feed pipe tabs (F) with the indentations in the end cover.
- Install a new O-ring (G) in the end cover, then install the feed pipe flange over the 3rd clutch feed pipe.
- Secure the 3rd clutch feed pipe and the feed pipe flange with the snap ring.
- Remove the snap ring (H) and the feed pipe flange (I).
- Check the 4th clutch feed pipe (J) and the 2nd clutch feed pipe (K) for scoring and damage. Replace the end cover, if the feed pipe is scored or damaged.
- Install a new O-ring (L) over the 4th clutch feed pipe.
- Install a new O-ring (M) in the end cover, then install the feed pipe flange over the 4th clutch feed pipe.
- Secure the 4th clutch feed pipe and the feed pipe flange with the snap ring.
