Lubrication Check Valve Replacement

  1. Remove the sealing bolt (A) and the sealing washer (B).

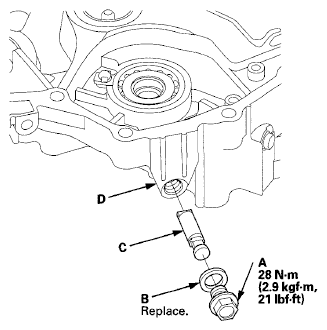

    Fig 1: Removing Sealing Bolt And Sealing Washer With Torque Specifications
    G06768651Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the lubrication check valve (C) from the torque converter housing (D).
  3. Install the lubrication check valve, a new sealing washer, and the sealing bolt.
