Countershaft Bearing Replacement

Special Tools Required

• Adjustable Bearing Puller, 25-40 mm 07736-A01000B
• Driver Handle, 15 x 135L 07749-0010000
• Oil Seal Driver Attachment 07JAD-PH80101

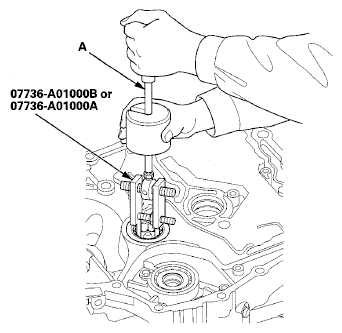

1. Remove the countershaft bearing using the adjustable bearing puller (20-40 mm) and a commercially available 3/8 "-16 slide hammer (A).
   Fig 1: Removing Countershaft Bearing Using Adjustable Bearing Puller

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the ATF guide plate (A).
   Fig 2: Installing Atf Guide Plate

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

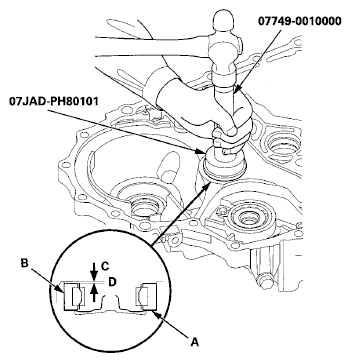

3. Install the new countershaft bearing (B) in the housing using the driver handle and the attachment (62 x 68 mm); install the bearing outer race surface in height (C) of 0-0.03 mm (0-0.001 in) above the housing surface (D). Do not install the bearing exceeding 0.03 mm (0.001 in) high from housing surface.
