2 Position (Seven-position Transmission)
The PCM controls the shift solenoid valves and the A/T clutch pressure control solenoid valves. The conditions of the shift solenoid valves and the position of the shift valves are as follows:
- Shift solenoid valve A is turned ON, and shift valve A is moved to the left side.
- Shift solenoid valve B is turned OFF, and shift valve B is in the right side.
- Shift solenoid valve C is turned OFF, and shift valve C is in the left side.
Line pressure (4) from the manual valve becomes 2nd clutch pressure (20) at shift valve A, via shift valves C and B. 2nd clutch pressure (20) is applied to the 2nd clutch, and the 2nd clutch is engaged.
NOTE:
- When used, "left" or "right" indicates direction on the hydraulic circuit.

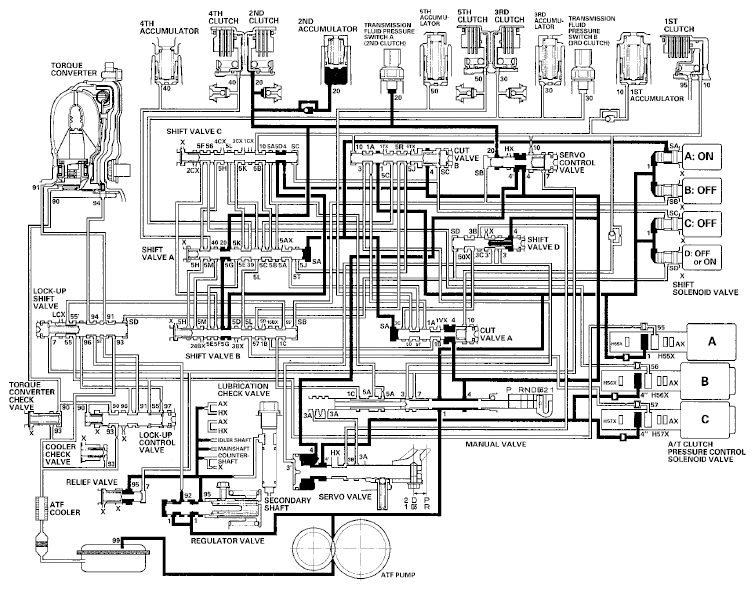

- The illustration shows the seven-position transmission; the five-position transmission does not have position 2.
