1 Position (Seven-position Transmission)
The PCM controls the shift solenoid valves and the A/T clutch pressure control solenoid valves. The conditions of the shift solenoid valves and the position of the shift valves are as follows:
- Shift solenoid valve A is turned OFF, and shift valve A is in the right side.
- Shift solenoid valve B is turned ON, and shift valve B is moved to the left side.
- Shift solenoid valve C is turned OFF, and shift valve C is in the right side.

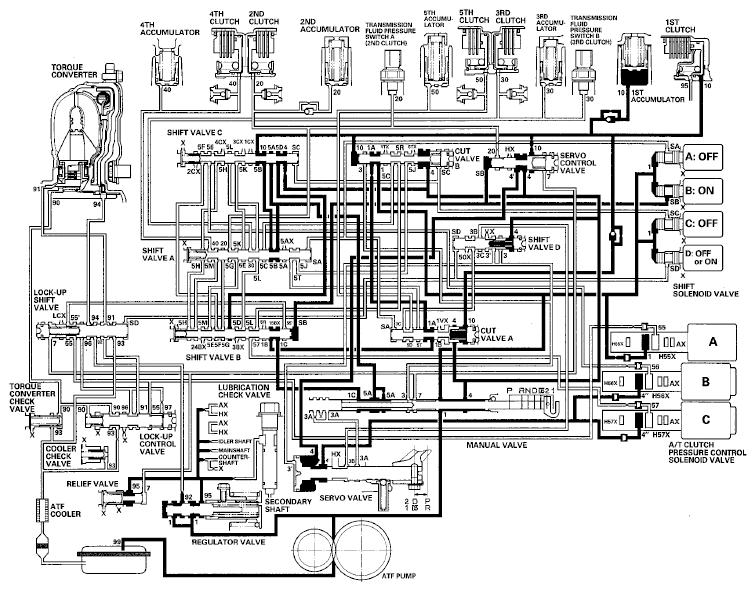

Line pressure (1) from the manual valve flows to cut valve B, cut valve A, shift valve B, and becomes line pressure (5A) at the manual valve. Line pressure (5A) passes through shift valve A, flows to shift valve C, and becomes 1st clutch pressure (10). 1st clutch pressure (10) is applied to the 1st clutch, and the 1st clutch is engaged.
NOTE:
- When used, "left" or "right" indicates direction on the hydraulic circuit.
- The illustration shows the seven-position transmission; the five-position transmission does have position 1.
