Tool Maintenance

Follow these instructions to keep the ATF cooler cleaner working properly:

• Replace the two magnetic nonbypass spin-on filters after every 20 hours of use, based on the hour meter, or when you notice a restriction in the ATF flow.
• Check the level and condition of the fluid in the tank before each use.
• Replace the ATF in the tank when it looks dark or dirty.

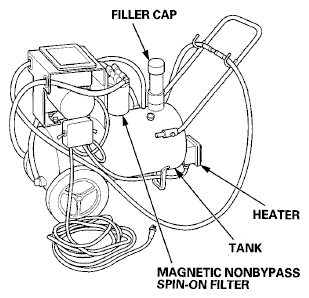

  Fig 1: Identifying ATF Cooler Cleaner Connections

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
