Oil Seal Replacement

Special Tools Required

• Driver Handle, 15 x 135L 07749-0010000
• Oil Seal Driver Attachment 07JAD-PH80101

1. Remove the oil seal from the transmission housing.
   Fig 1: Removing Oil Seal From Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the oil seal from the torque converter housing.
   Fig 2: Removing Oil Seal From Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the new oil seal in the transmission housing between 0.2 mm below and 0.5 mm above the housing surface using the driver handle and the oil seal driver attachment.

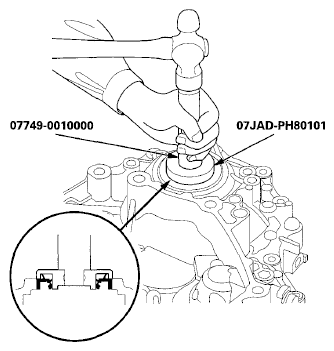

   Fig 3: Installing Oil Seal In Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the new oil seal in the torque converter housing between 0.2 mm below and 0.5 mm above the housing surface using the driver handle and the oil seal driver attachment.
   Fig 4: Installing New Oil Seal In Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
