Rack End Removal and Installation
>>
Exploded view
Exploded view

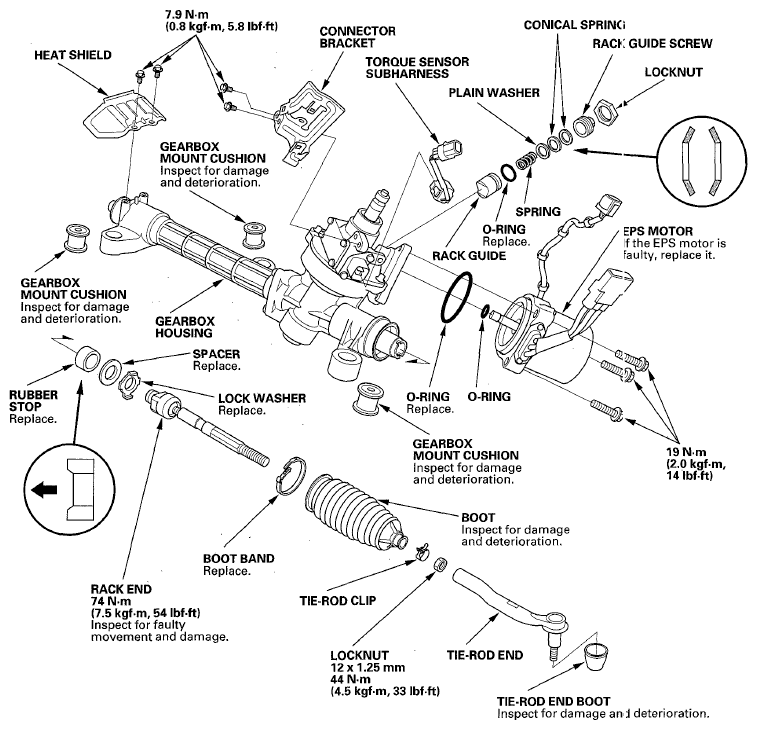

Fig 1: Exploded View Of Rack End Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
