Side Impact Sensor (Second) Replacement: Installation

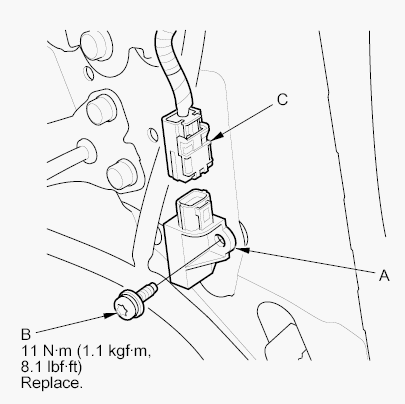

- Install the side impact sensor (second) (A) with a new TORX bolt (B), using a TORX T30 bit. Connect the side impact sensor (second) 2P connector (C) on the floor wire harness.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION
).
- Clear any DTCs with the HDS (see CLEAR THE DTC MEMORY ).
- Confirm proper SRS operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then go off.
- Reinstall all removed parts.
