SRS Unit Replacement: Removal

  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Remove the heater joint duct (see step 5 on DASHBOARD/STEERING HANGER BEAM REMOVAL/INSTALLATION ).
  4. Disconnect SRS unit connectors A (39P) and B (39P) from the SRS unit.

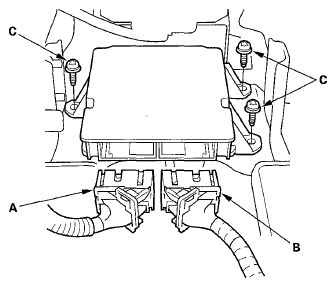

    Fig 1: Identifying SRS Unit Connectors A (39P) & B (39P)
    G05960621Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the TORX bolts (C) using a TORX T30 bit, then pull out the SRS unit.
