ODS Unit Replacement: Removal
- Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION
), then wait at least 3 minutes before starting work.
- Disconnect the passenger's side airbag harness 2P connector (see step 5 on SEATS WITH SIDE AIRBAGS
).
- Remove the front passenger's seat-back cover/pad (see FRONT SEAT-BACK COVER/PAD REPLACEMENT
).

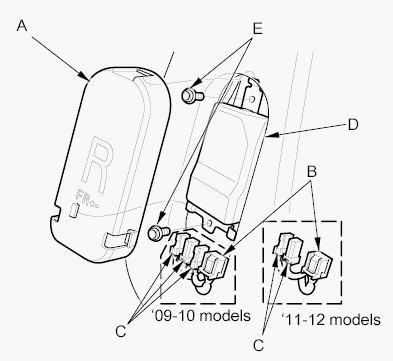

- Remove the cover (A), then disconnect the ODS unit 18P connector (B) and OPDS sensor connectors (C) from the ODS unit (D).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the two bolts (E) and the ODS unit.
