Windshield Is Cracked (12-006)

Publication date: 2013-02-01
Reference number: 12-006

WINDSHIELD IS CRACKED

TECHNICAL SERVICE BULLETIN

Reference Number(s): 12-006, Date of Issue: February 2, 2013

Superceded Bulletin(s): 12-006, Date of Issue: January 21, 2012

In Applies To, 2011-12 model years were added.

The windshield has a vertical crack starting at the bottom, above the cowl, near the middle.

Replace the windshield.

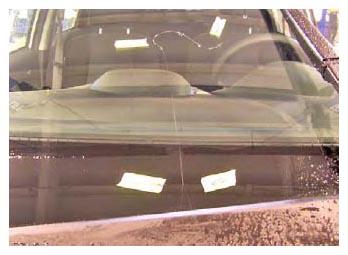

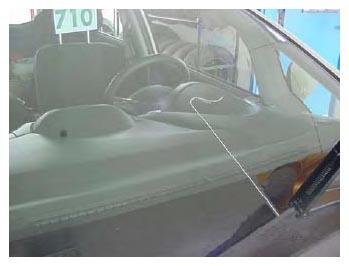

Make sure the crack is similar to the ones shown in the photos. If the windshield is cracked from debris or other objects, or cracked in another location, this service bulletin does not apply.
Make sure you take digital photographs of the crack, and obtain DPSM approval before you replace the windshield. Refer to Service Bulletin 09-094, PHOTOS FOR WARRANTY WINDSHIELD CLAIMS .

Front Glass Set:

P/N 73111-TK6-315

Pillar Trim Clip (two required):

P/N 91561-TA0-A11

Windshield Molding

P/N 73150-TF0-003

The normal warranty applies.

Operation Number: 831120

Flat Rate Time: 1.7 hours

Failed Part: 73111-TK6-305

Defect Code: 01801

Symptom Code: 01702

Skill Level: Repair Technician

Replace the windshield.

Refer to page 20-44 of the 2009-2011 Fit Service Manual , or
For 2009-2011 Fit, see WINDSHIELD REPLACEMENT
Online, enter keyword WINDSHIELD, and select Windshield Replacement from the list.
