Yaw Rate
WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
This diagnostic checks the yaw rate sensor in the navigation unit. This device detects when the vehicle turns, and repositions the vehicle position icon on the map screen. For more detailed information, see the yaw rate sensor theory of operation under System Description (see YAW RATE-LATERAL ACCELERATION SENSOR ).

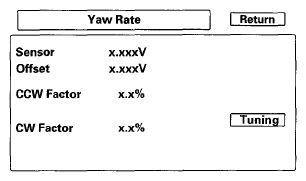

- Sensor indicates the voltage output from the yaw rate sensor. It should indicate about 2.500 V when the vehicle is stopped.
- Offset is the reference voltage or standard within the yaw rate sensor. It also should indicate about 2.500 V when the vehicle is stopped.
- A sensor output voltage LOWER than the Offset voltage indicates that the vehicle is turning to the right.
A sensor output voltage HIGHER than the Offset voltage indicates that the vehicle is turning to the left.
- The yaw rate offset, and sensor should both indicate about 2.500 V when the vehicle is stopped. If either reads zero, or 5.000 V, replace the audio-navigation unit.
- The yaw rate offset and sensor should be within +/-0.01 V of each other when the vehicle is stopped. The sensor value should change relative to the offset as the vehicle turns while driving. If not, replace the audio-navigation unit.
Example: Vehicle stopped
VEHICLE STOPPED REFERENCE TABLE
| Normal | Abnormal | ||
|---|---|---|---|
| Offset | 2.526 V | Offset | 2.526 V |
| Sensor | 2.516-2.536 V | Sensor | 2.623 V |
Example: Vehicle turning
VEHICLE TURNING REFERENCE TABLE
| Normal | Abnormal | ||
|---|---|---|---|
| Offset | 2.526 V | Offset | 2.526 V |
| Sensor | 2.678 V (left turn) 2.478 V (right turn) | Sensor | 2.623 V (no change on turns) |
- Sensitivity study represents the status of the internal tuning function. At initialization, this value starts at 6 and increases to 10 as the internal correction values become more accurate.
- The settings CCW Cal Factor, CW Cal Factor, and Set are for factory use only. THIS SHOULD NEVER BE ADJUSTED.
- For detailed analysis of the yaw rate select tuning.
