How to Clear Error History

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the steps in How to check Error History.
  2. Select Clear in the error menu.
    NOTE:
    • By selecting Clear, all software and hardware errors stored in history are erased at the same time.
    • Save is for factory use only.

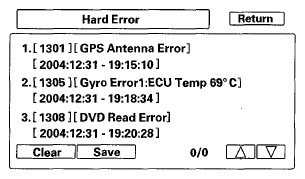

    Hard error history is displayed

    Fig 1: Identifying Screen Display - Hard Error History
    G05960282Courtesy of AMERICAN HONDA MOTOR CO., INC.

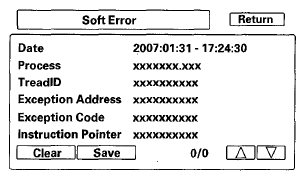

    Soft error history is displayed (Soft errors are for factory use only)

    Fig 2: Identifying Screen Display - Soft Error History
    G05960283Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. After selecting Clear, then selecting Yes, both Hard Error history and Soft Error history are cleared at the same time.

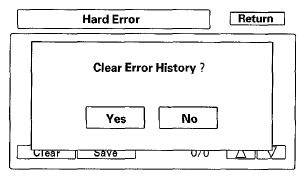

    Hard error history clear

    Fig 3: Identifying Screen Display - Hard Error History Clear
    G05960284Courtesy of AMERICAN HONDA MOTOR CO., INC.

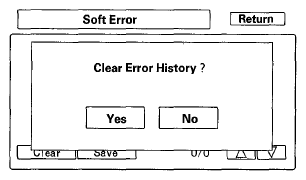

    Soft error history clear (Soft errors are for factory use only)

    Fig 4: Identifying Screen Display - Soft Error History Clear
    G05960285Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Press Return to exit.
