Intake Manifold/Chamber Assembly Removal and Installation: Installation

Reassemble the intake manifold/chamber assembly.
NOTE: Refer to the Exploded View if needed during this procedure.
Install the intake manifold/chamber assembly (A) with a new gasket (B).
NOTE: Tighten the bolts and nuts in a crisscross pattern in three steps, beginning with the inner bolt.

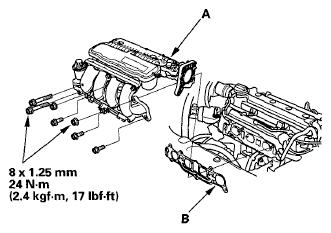

Fig 1: Intake Manifold/Chamber Assembly & Gasket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the intake manifold bracket mounting bolts (A, B), then loosely install the intake manifold bracket mounting bolts (C, D).

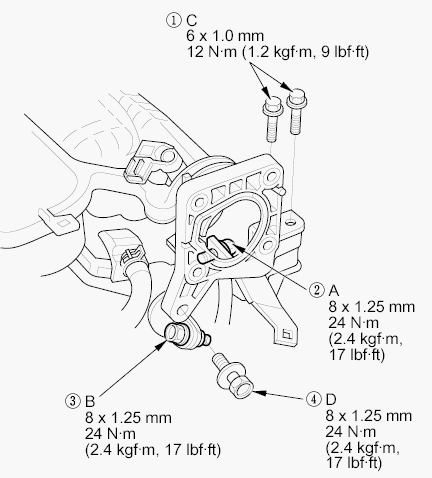

Fig 2: Intake Manifold Bracket Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the intake manifold bracket mounting bolts in the numbered sequence shown.
Install the throttle body (A) with a new gasket (B), and the throttle flange plates (C).

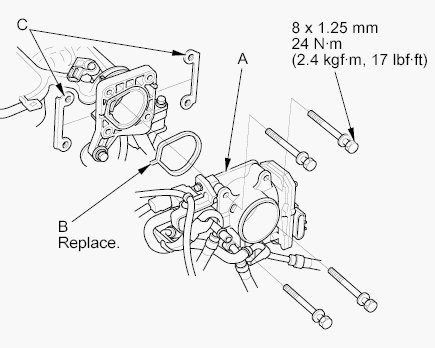

Fig 3: Throttle Body & Gasket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the PCV hose (A).

Fig 4: Identifying PCV Hose & Harness Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the harness holder (B) and the dipstick (C).
Install the water bypass hose (A) to the clamp (B).

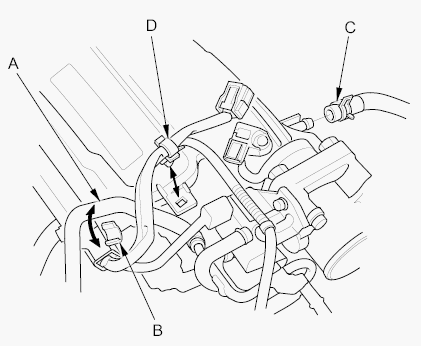

Fig 5: Identifying Water Bypass Hose, Clamp & Harness Clamp
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the brake booster vacuum hose (C) and install the harness clamp (D).
Connect the engine wire harness connectors, and install the wire harness clamps to the intake manifold chamber:
- Throttle actuator connector
- MAP sensor connector
- EGR valve connector
Install the air cleaner housing assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
Install the under-cowl panel (see UNDER-COWL PANEL REPLACEMENT ).
