Intake Manifold Removal and Installation: Installation

  1. Reassemble the intake manifold.

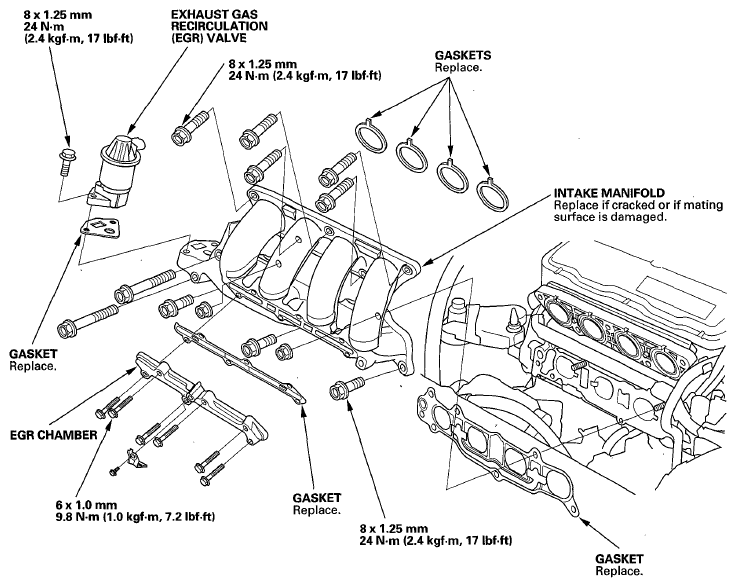

    NOTE: Refer to the Exploded View if needed during this procedure (see Figure).
  2. Install the intake manifold (A) with new gaskets (B).

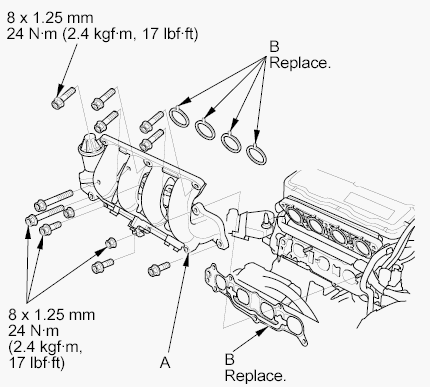

    Fig 1: Identifying Intake Manifold & Gaskets
    G05952694Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the dipstick.
  4. Connect the EGR valve connector.
  5. Install the PCV hose (A).

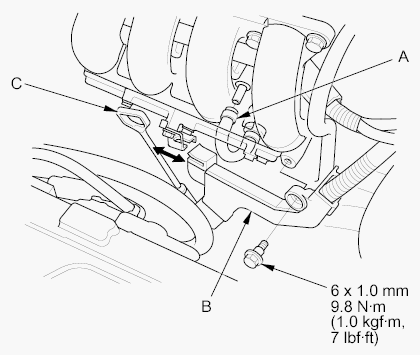

    Fig 2: Identifying PCV Hose & Harness Holder
    G05952695Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the harness holder (B) and the dipstick (C).
