Driver's Dashboard Undercover Removal/Installation

NOTE: Take care not to scratch the dashboard or its related parts.

Remove the driver's dashboard undercover (A).
1. Turn the lock knob (B) 90°.
2. Gently pull down the rear edge to detach the clip.
3. Pull the undercover away to release the pins (C) from the holders (D).

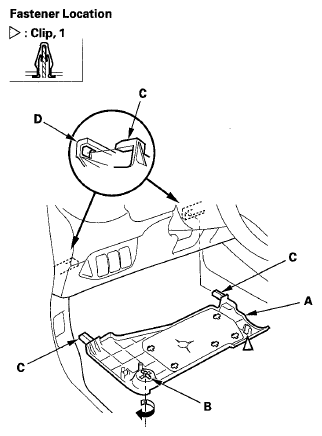

  Fig 1: Removing Driver's Dashboard Undercover
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. With HFL: Disconnect the HFL control unit connector (E).

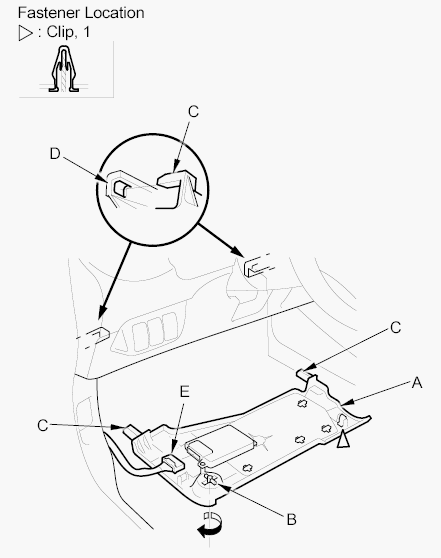

  Fig 2: Removing Driver's Dashboard Undercover (With Handsfree Link)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the undercover in the reverse order of removal, and note these items:
- If the clip is damaged or stress-whitened, replace it with a new one.
- Push the clip and pins into place securely.
