Dashboard Glove Box Cover Removal/Installation

NOTE: Take care not to scratch the dashboard or its related parts.
  1. Remove the dashboard/steering hanger beam (see DASHBOARD/STEERING HANGER BEAM REMOVAL/INSTALLATION  ).
  2. Remove the screws and release the hooks (A), then remove the dashboard glove box center cover (B) and the dashboard glove box outer cover (C).

    Center

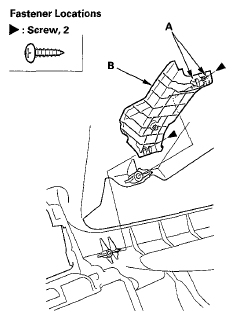

    Fig 1: Identifying Hooks, Dashboard Glove Box Center Cover & Dashboard Glove Box Outer Cover
    G05959559Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Outer

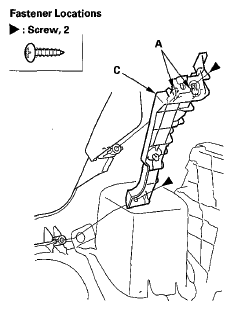

    Fig 2: Identifying Hooks & Dashboard Glove Box Center Cover
    G05959560Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the covers in the reverse order of removal.
