Rear Strake Replacement

NOTE: Take care not to scratch the body.

Remove the clips, then remove the rear strake (A) from the body.
NOTE: To release the clips, pry up on the center pin at the notch (B).

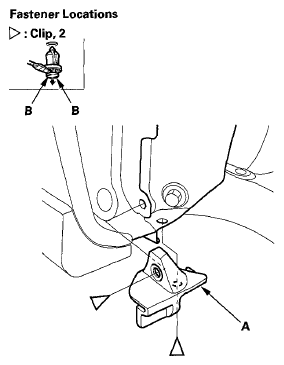

Fig 1: Identifying Rear Strake
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the strake in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
