Rear Inner Fender Replacement

NOTE:

Remove the screws (A) and the clips (B, C), then remove the rear inner fender (D).
NOTE: To release the clips, pry up on the center pin at the notch (E).

Left side

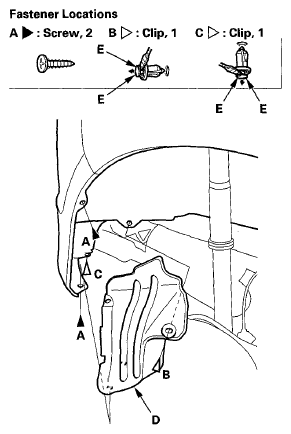

Fig 1: Identifying Rear Inner Fender With Fastener Location - Left Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right side

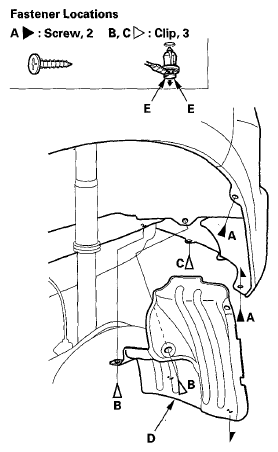

Fig 2: Identifying Rear Inner Fender With Fastener Location - Right Side
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
