Rear Window

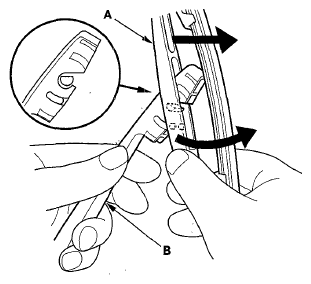

  1. Turn the wiper blade assemblies (A), and remove the lock from the wiper arm (B).
    Fig 1: Identifying Wiper Blade Assemblies & Wiper Arm
    G05960116Courtesy of AMERICAN HONDA MOTOR CO., INC.

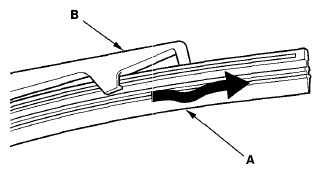

  2. Pull the wiper blade (A) up, and slide it out from the wiper blade holder (B).
    Fig 2: Identifying Wiper Blade & Holder
    G05960117Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install a new wiper blade in the reverse order of removal.
  4. Test the wiper operation. If the blade slips, turn the wiper switch OFF, and reinstall the blade securely.
