Washer Reservoir Replacement

Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) and tubes (B) from the washer motor (C) and the washer fluid level switch (Canada models).
Washer Reservoir Capacity:

2.5 L (2.64 US qt): USA models

4.5 L (4.75 US qt): Canada models

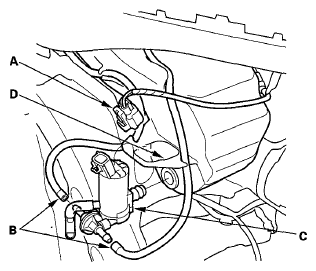

Fig 1: Identifying Washer Motor & 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the washer motor (C) from the washer reservoir (D).
Remove the bolts (A) and clips (B), then remove the washer reservoir (C).

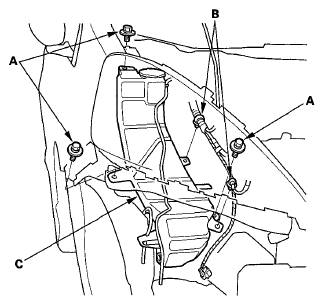

Fig 2: Identifying Washer Reservoir With Clips & Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the washer reservoir in the reverse order of removal. Check the washer motor operation.
