Clutch Pedal Position Switch Test

Disconnect the 2P connector (A) from the clutch pedal position switch.

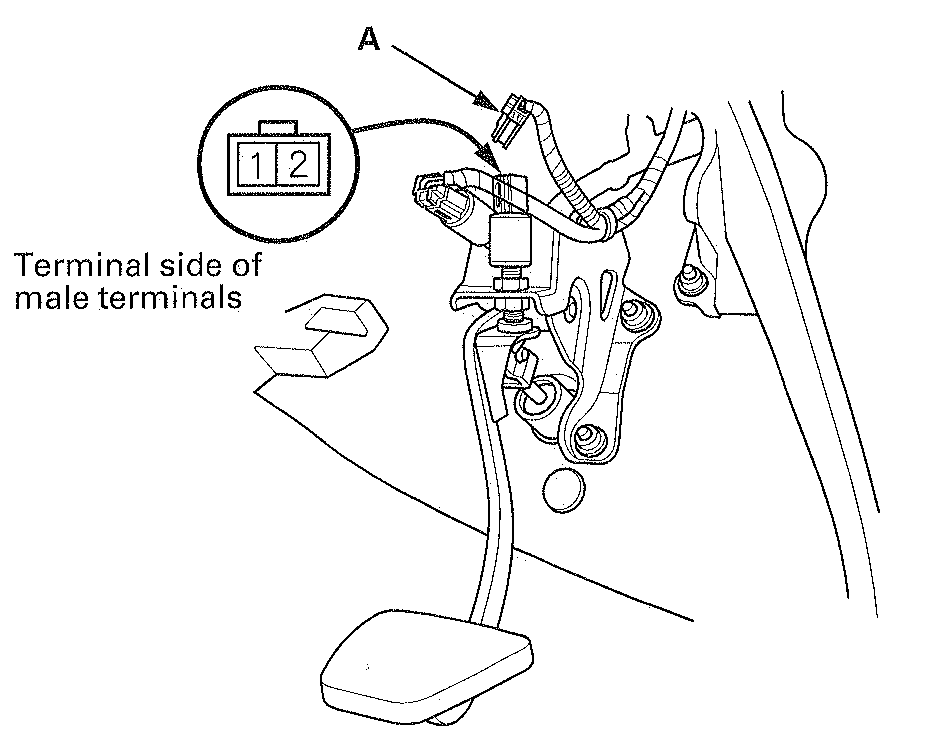

Fig 1: Identifying Clutch Pedal Position Switch 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals according to the table.
- If the continuity is not as specified, replace the clutch pedal position switch.
- If OK, install the clutch pedal position switch, and adjust the pedal height (see CLUTCH PEDAL, CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH ADJUSTMENT ).

  Fig 2: Identifying Clutch Pedal Position Switch Continuity Table
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
