Home
>>
Honda
>>
2012
>>
CR-Z Base, Standard Trans
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
EPS System
>>
Component Location Index
Component Location Index

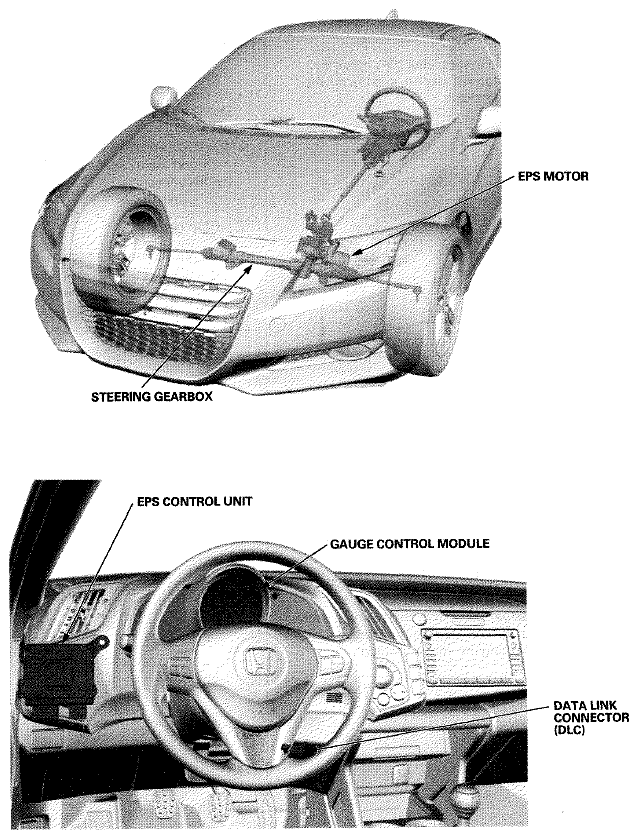

Fig 1: Identifying EPS System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
