Intake Air Resonator Removal/Installation

Do the 12 volt battery removal procedure (see 12 VOLT BATTERY REMOVAL AND INSTALLATION ).
Remove the intake air tube (A) and the resonator chamber joint (B).

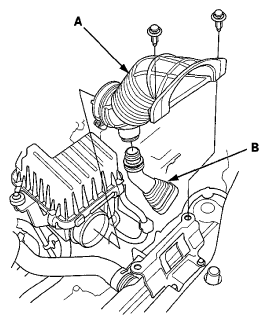

Fig 1: Identifying Intake Air Tube And Resonator Chamber Joint
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the left side front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Remove the harness clamp (A) and the intake air resonator (B).

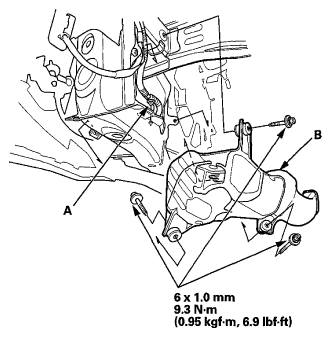

Fig 2: Harness Clamp And Intake Air Resonator With Mounting Bolts Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the intake air resonator and the harness clamp.
Install the left side front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Install the resonator chamber joint (A) and the intake air tube (B).
NOTE: When tightening the screw (C) of the hose band, align the edge of the hose band (D) with the mark (E) painted on the hose band. If you tighten the screw over the mark, replace the hose band.

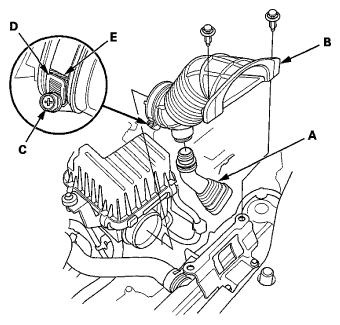

Fig 3: Identifying Resonator Chamber Joint, Intake Air Tube, Hose Bands And Mounting Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the 12 volt battery installation procedure (see 12 VOLT BATTERY REMOVAL AND INSTALLATION ).
