Front Seats

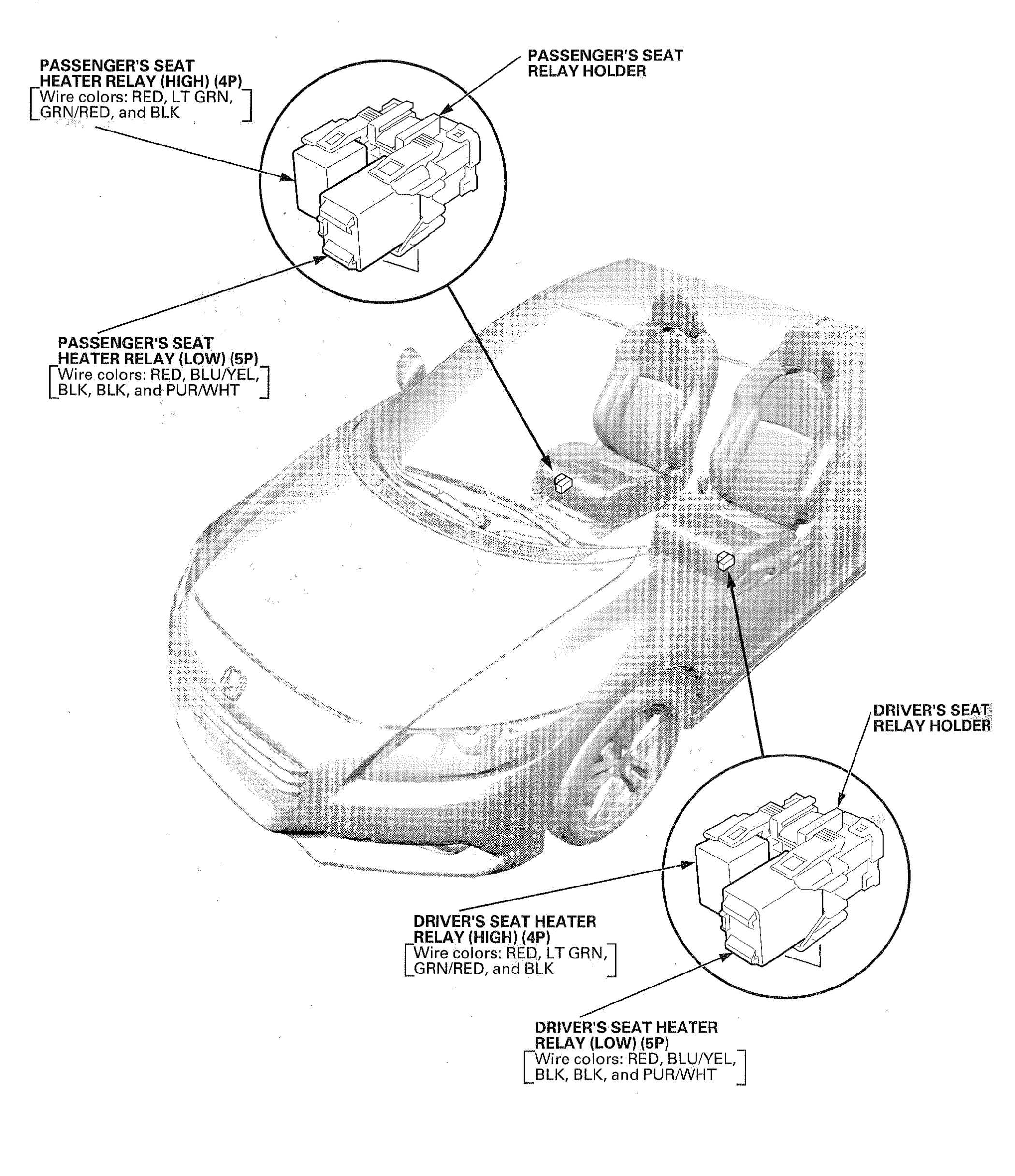

Fig 1: Identifying Drivers & Passengers Seats Heater Relay

G00514318

Courtesy of AMERICAN HONDA MOTOR CO., INC.
