Exploded View
Exploded View

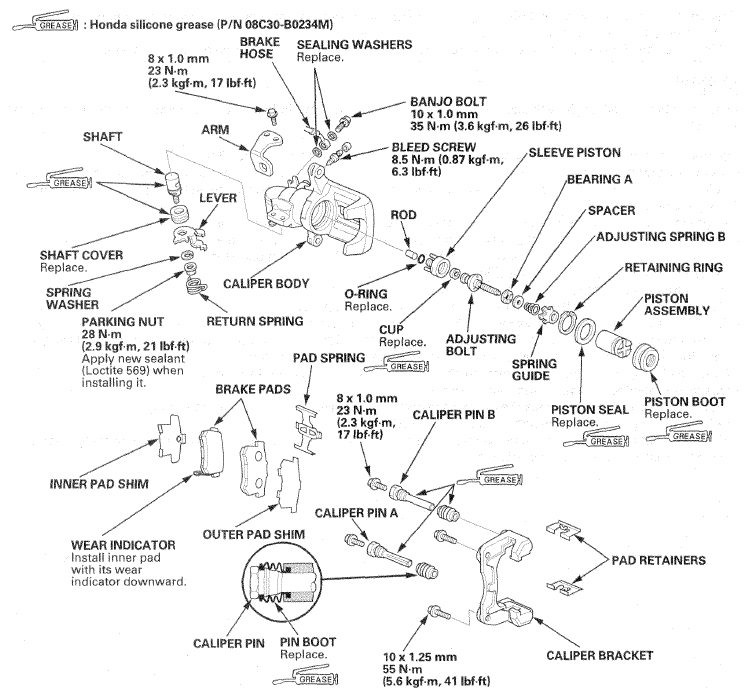

Fig 1: Exploded View Of Rear Brake Caliper With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
