Trailing Arm Brace Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the body or the related parts.
  1. Remove the middle floor undercover (see MIDDLE FLOOR UNDERCOVER REPLACEMENT ).
  2. Remove the bolts (A, B) and the nuts, then remove the trailing arm brace (C) from the body.

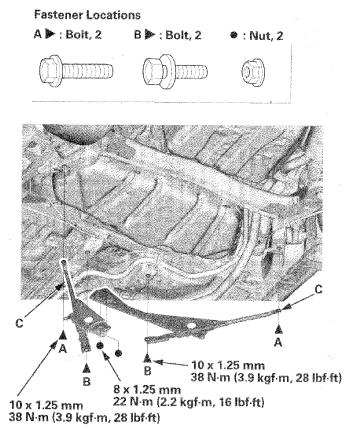

    Fig 1: Trailing Arm Brace With Bolt And Nut Torque Specifications
    G06953584Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the trailing arm brace in the reverse order of removal.
