Hatch Release Actuator Test

Open the hatch.
Remove the hatch lower trim (see TRIM REMOVAL/INSTALLATION - HATCH AREA ).
Disconnect the 2P connector (A) from the hatch release actuator (B).

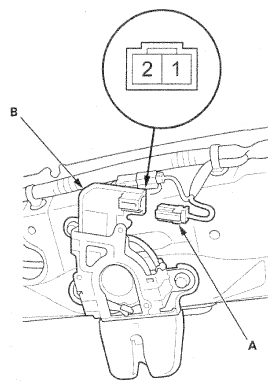

Fig 1: Identifying Hatch Release Actuator And 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Fig 2: Actuator Operation Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the actuator does not operate as specified, replace the hatch latch (see HATCH LATCH REPLACEMENT ).
