CVTF Feed Pipe Replacement

  1. Remove the two feed pipe flange plates (A), then remove the two CVTF feed pipes (B) and two feed pipe flanges (C) from the end cover (D).
    NOTE: Replace the end cover if replacement of the unremovable two CVTF feed pipes (E) is required.

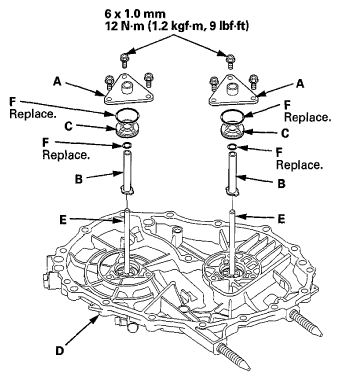

    Fig 1: Locating Feed Pipe Flange Plates, CVTF Feed Pipes, Feed Pipe Flanges And End Cover Components
    G06951212Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the O-rings (F) from the two CVTF feed pipes and the two feed pipe flanges, then replace the two CVTF feed pipes.
  3. Check the two feed pipe flange plates and the two feed pipe flanges for wear or damage, and replace them if necessary.
  4. Install new O-rings over two new CVTF feed pipes and on the two feed pipe flanges.
  5. Install the CVTF feed pipe (A) through the feed pipe flange (B) by aligning the CVTF feed pipe tabs (C) with the guides (D) on the feed pipe flange.
    Fig 2: Locating CVTF Feed Pipe, Feed Pipe Flange, CVTF Feed Pipe Tabs And Guides Components
    G06951213Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the CVTF feed pipe over the unremovable CVTF feed pipe (E), and align the mark (F) on the feed pipe flange between the tabs (G) on the end cover.
  7. Install the feed pipe flange plate.
