Component Location Index

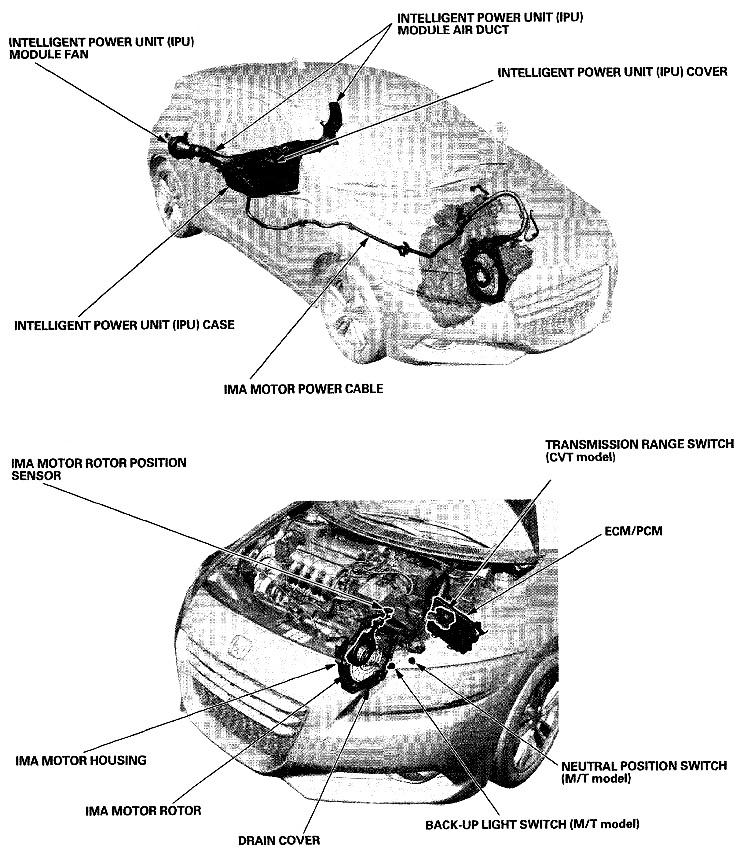

Fig 1: Identifying IMA System Components (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

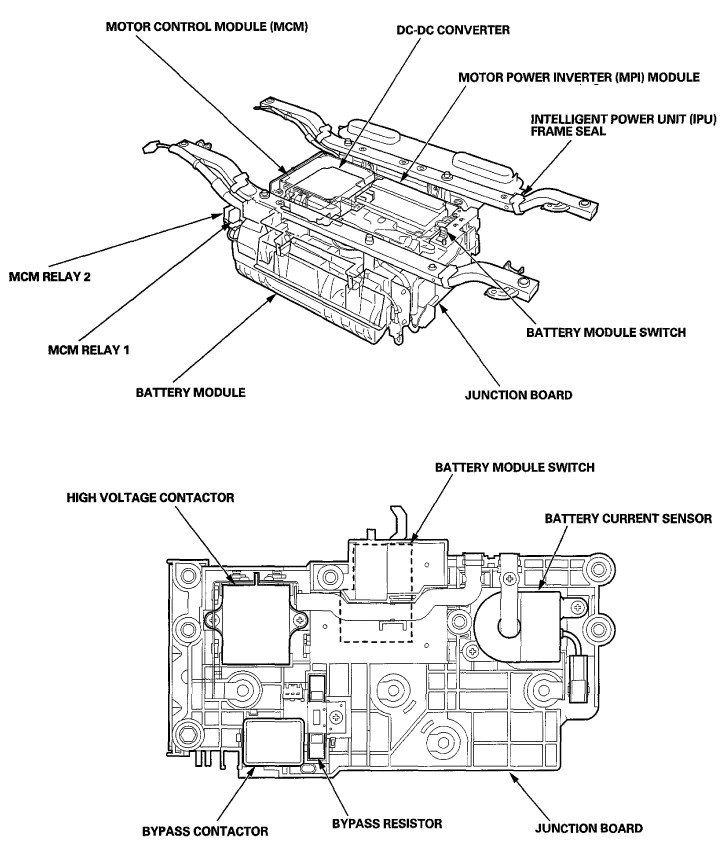

Fig 2: Identifying IMA System Components (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

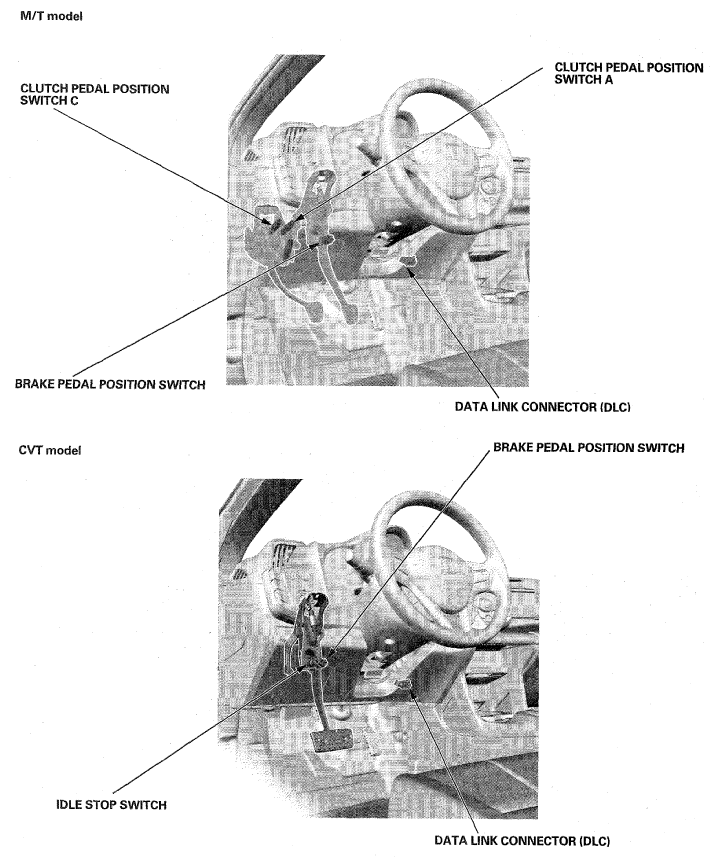

Fig 3: Identifying Clutch Pedal Position Switch C, A, Brake Pedal Position Switch And Data Link Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

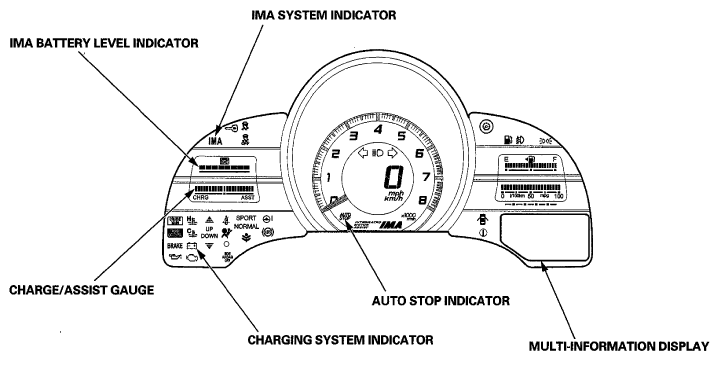

Fig 4: Identifying IMA Battery Level Indicator, IMA System Indicator, Auto Stop Indicator And Multi-Information Display

Courtesy of AMERICAN HONDA MOTOR CO., INC.
