Center Console Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repair or service.

1. M/T model: Remove the shift lever trim (see SHIFT LEVER HOUSING REPLACEMENT ).

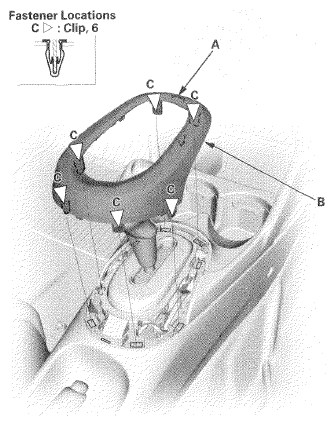

2. CVT model: Insert the appropriate trim tool to the groove (A) at front of the A/T gear position indicator panel trim (B) to detach the clips (C), then remove the A/T gear position indicator panel trim.
   Fig 1: Identifying Groove, A/T Gear Position Indicator Panel Trim And Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

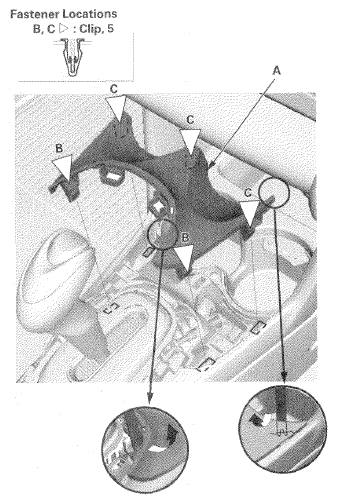

3. Remove the center console panel (A).
   1. Pry up on the rear edge of the center console panel with the appropriate trim tool to detach the clips (B).
   2. Insert the appropriate trim tool in the groove at front of the center console panel to detach the clips (C).
      Fig 2: Identifying Center Console Panel And Clips

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the dashboard center lower trim (see DASHBOARD CENTER TRIM REMOVAL/INSTALLATION ).

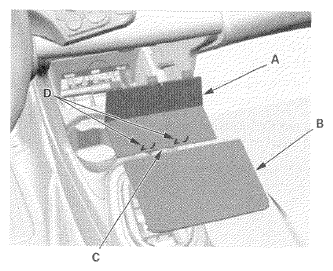

5. Remove the center console lid (A).
   1. Remove the front console mat (B).
   2. Insert the appropriate trim tool into the notch (C) of the center console lid to detach the hooks (D).
      Fig 3: Identifying Center Console Lid, Front Console Mat, Notch And Hooks

      Courtesy of AMERICAN HONDA MOTOR CO., INC.

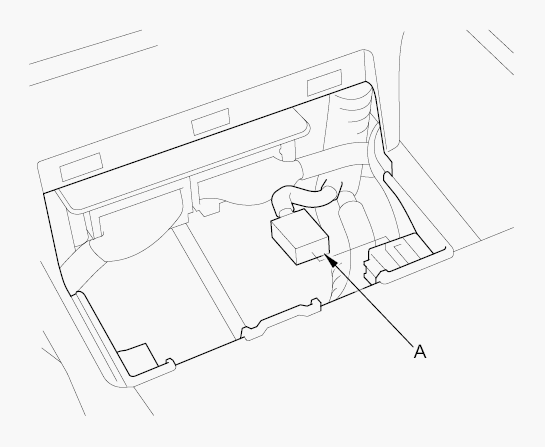

6. With seat heater: Disconnect the seat heater switch subharness connector (A).
   Fig 4: Identifying Seat Heater Switch Subharness Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Pry up on the rear edge of the parking brake cover lid (A) to detach the hooks (B), then remove it.
   Fig 5: Identifying Parking Brake Cover Lid And Hooks

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

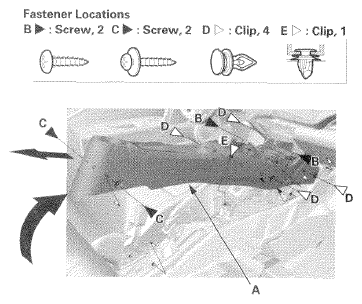

8. Remove the center console (A).
   1. Slide both seats forward fully.
   2. Remove the screws (B, C), and detach the clips (D).
   3. Pry up the rear portion of the center console to detach the clip (E).
   4. Pull out the front portion of the center console from the dashboard.
      Fig 6: Identifying Center Console And Fasteners

      Courtesy of AMERICAN HONDA MOTOR CO., INC.

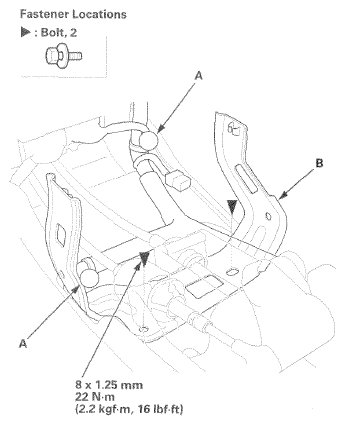

9. If necessary, detach the harness clips (A) and remove the bolts, then remove the center console bracket (B).
   Fig 7: Center Console Bracket, Clips With Bolt And Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Install the console in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new once.
    • Push the clips and the hooks into place securely.
    • Make sure the wire harness is not pinched.
    • Make sure each connector is plugged in properly.
