Component Location Index

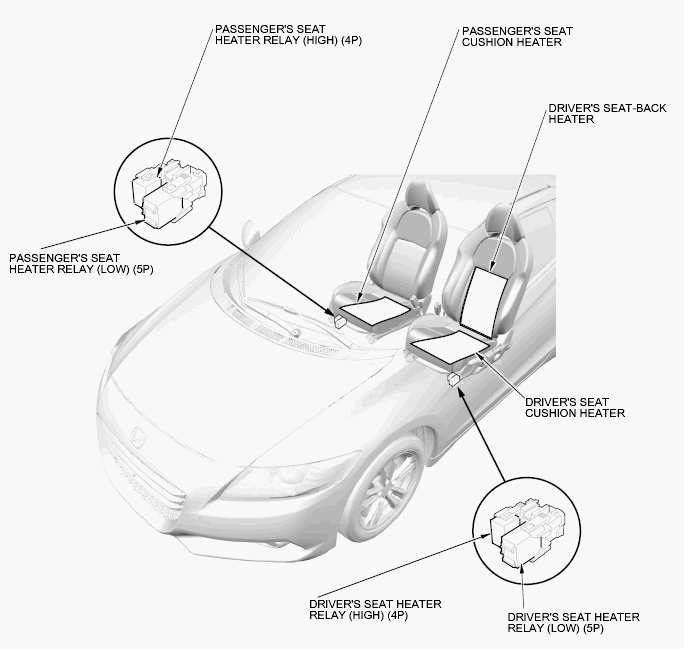

Fig 1: Identifying Seat Heaters Component Location (1 Of 2)
G00514331Courtesy of AMERICAN HONDA MOTOR CO., INC.

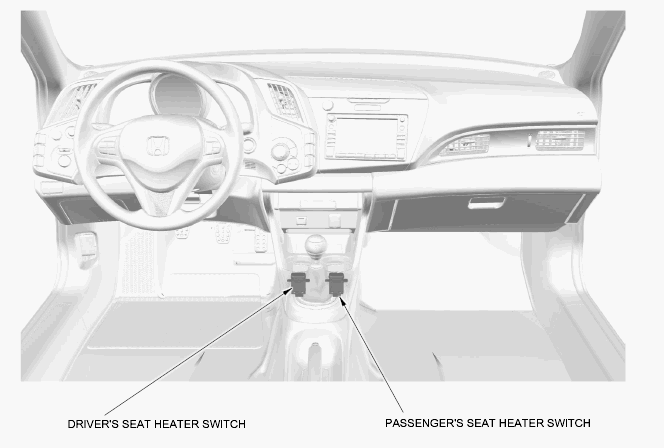

Fig 2: Identifying Seat Heaters Component Location (2 Of 2)
G00514332Courtesy of AMERICAN HONDA MOTOR CO., INC.
