Circuit Diagram - PCM A/T Control System

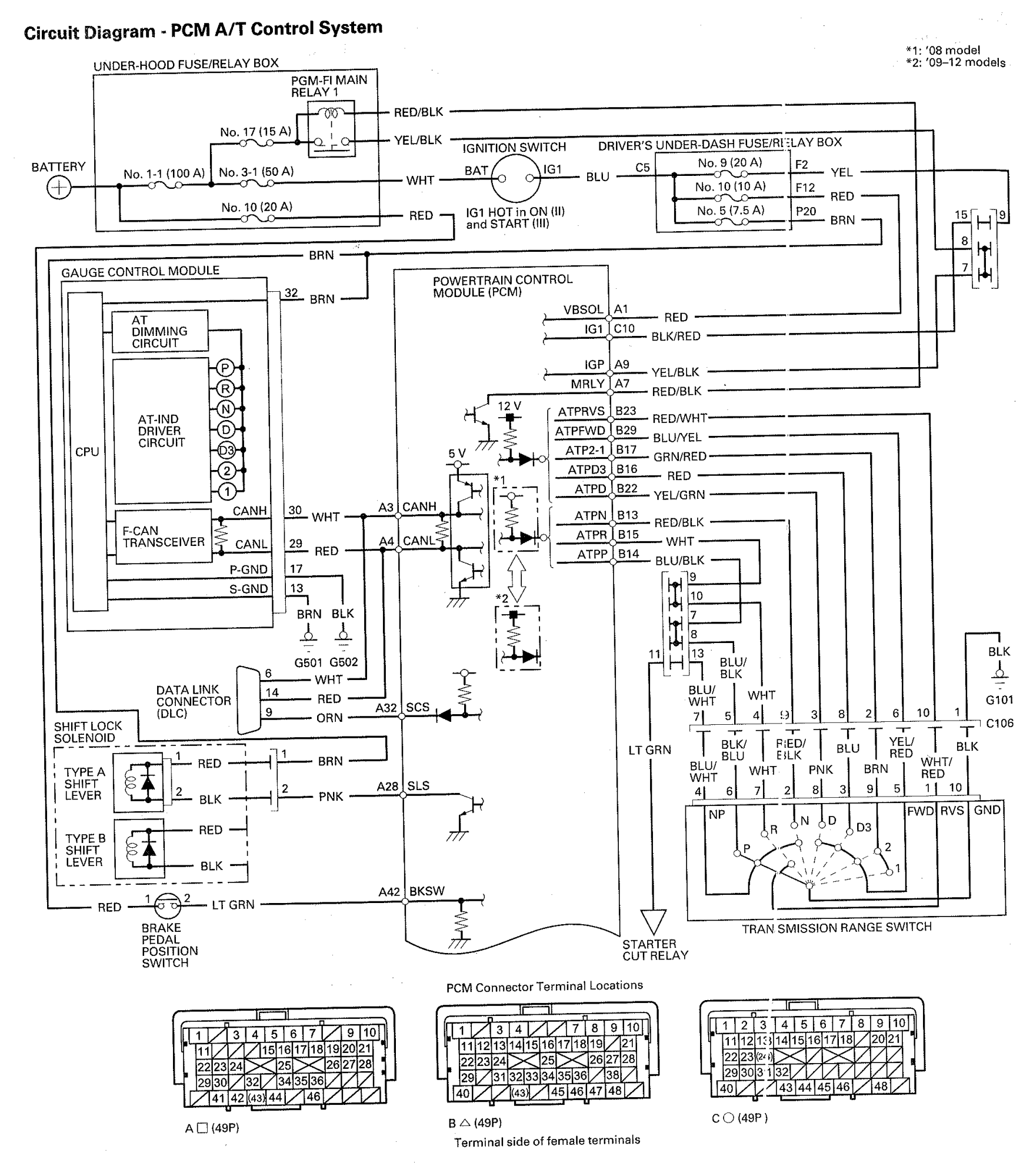

Fig 1: Identifying Circuit Diagram Of PCM A/T Control System
G00522629Courtesy of AMERICAN HONDA MOTOR CO., INC.

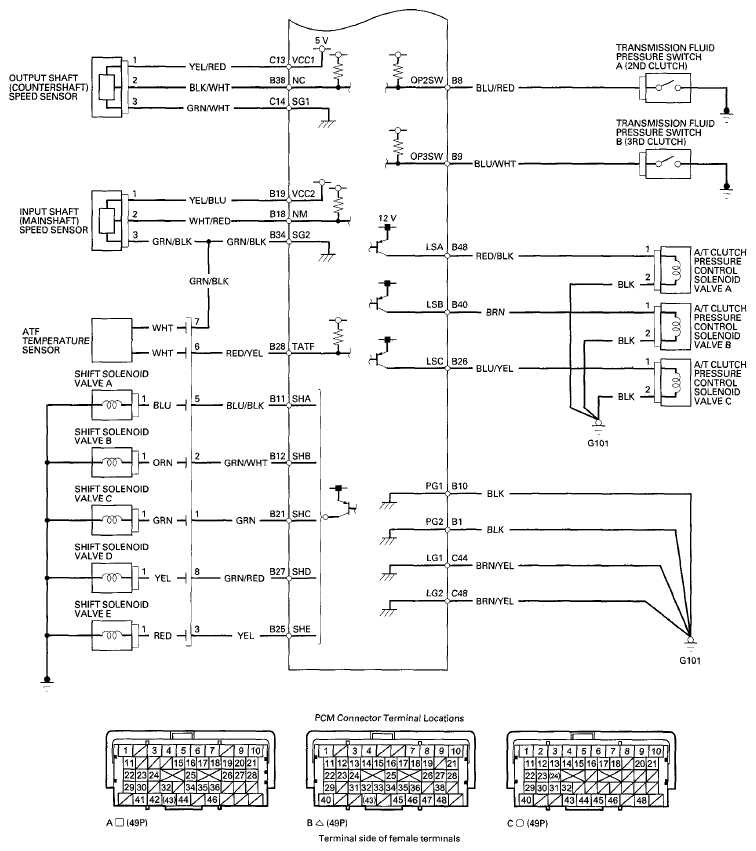

Fig 2: Identifying Circuit Diagram Of PCM A/T Control System
G07342173Courtesy of AMERICAN HONDA MOTOR CO., INC.
