PCM A/T Control System Electrical Connections

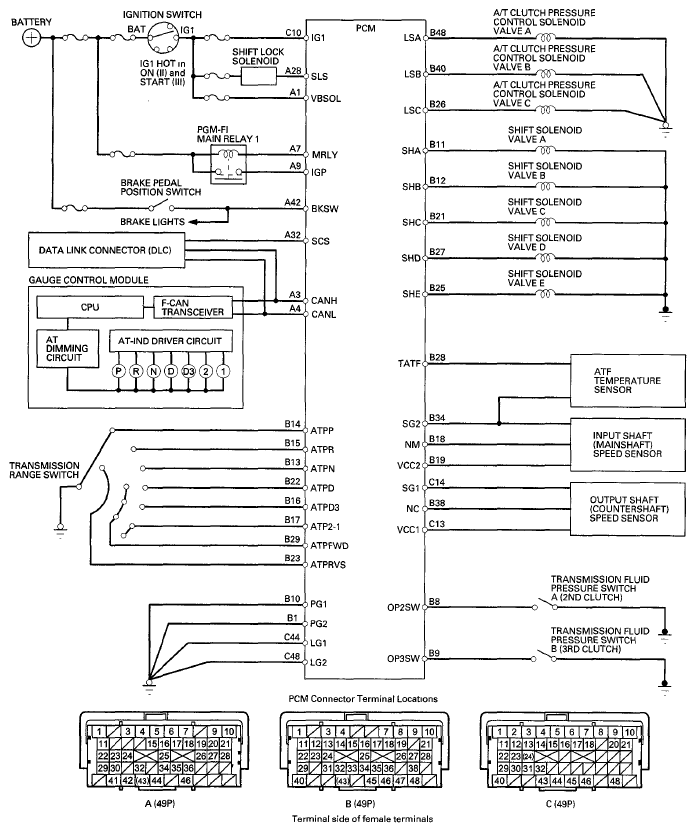

Fig 1: Identifying PCM A/T Control System Electrical Connections

G07342138

Courtesy of AMERICAN HONDA MOTOR CO., INC.
