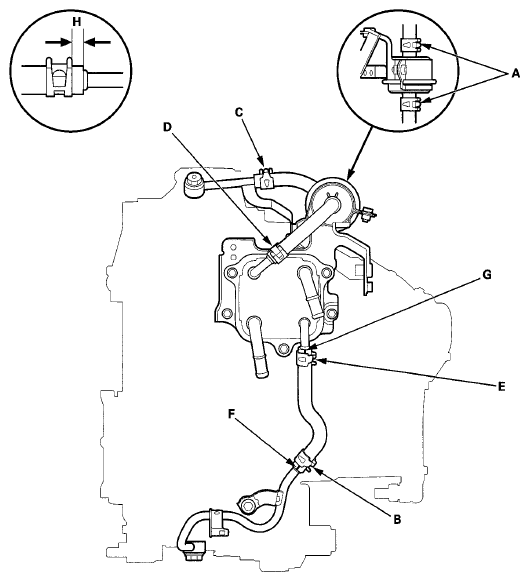

Exploded View
NOTE:
When installing the hose clamps, make sure they do not interfere with the surrounding parts.
- Install the ATF hoses over the ATF lines with the clips at appropriate points in reference to the following list. Align the pink paint mark (F) and the blue paint mark (G) pointing up.CONTACT POINT REFERENCE
Point Distance from Hose End to Clip (H) Hose End Contact Point A 6-8 mm (0.24-0.31 in) ATF Filter B 6-8 mm (0.24-0.31 in) Bulge C 6-8 mm (0.24-0.31 in) Bracket D 2-4 mm (0.08-0.16 in) Bulge E - Refill the transmission with ATF to the proper level (see ATF LEVEL CHECK ).
