Exploded View

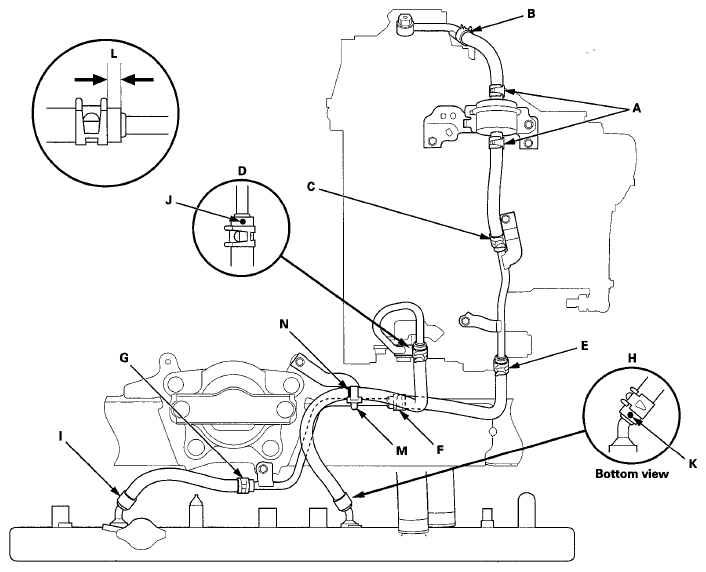

Fig 1: Exploded View Of ATF Cooler Hose

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

Install the ATF hoses over the ATF lines with the clips at appropriate points in reference to the following list. Align the pink paint mark (J) pointing up, and the white paint mark (K) pointing down.

CONTACT POINT REFERENCE

Point	Distance from Hose End to Clip (L)	Hose End Contact Point
A	6-8 mm (0.24-0.31 in)	ATF Filter
B	6-8 mm (0.24-0.31 in)	Bulge
C
D
E
F
G
H	2-4 mm (0.08-0.16 in)	Bulge
I	2-4 mm (0.08-0.16 in)	Bulge

Secure the ATF hose with the clamp (M) at the pink paint line (N).
Refill the transmission with ATF to the proper level (see ATF LEVEL CHECK ).
