Component Location Index

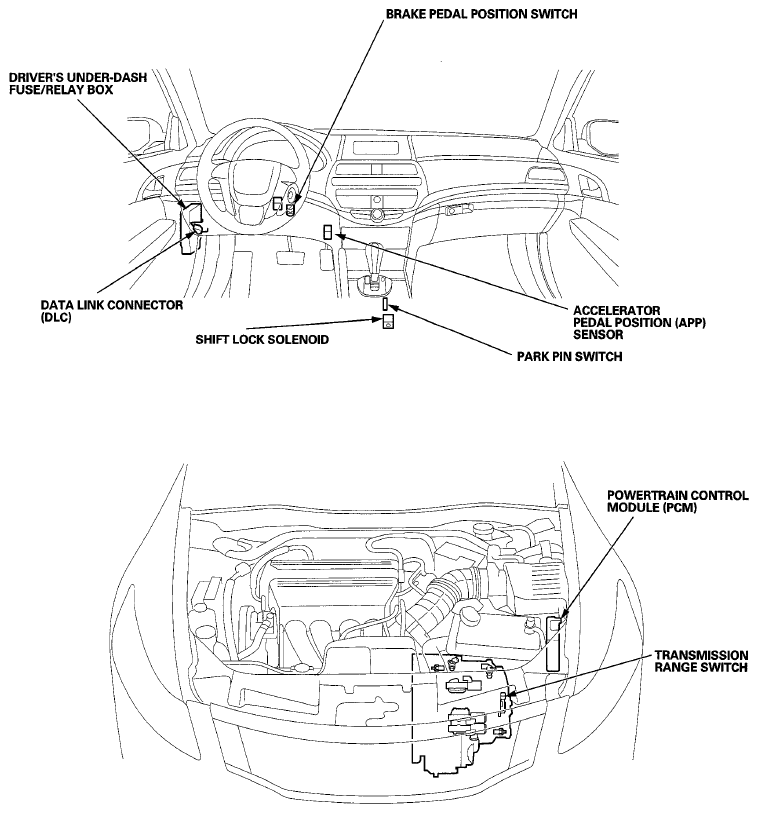

Fig 1: Identifying A/T Interlock System Components

G07342455

Courtesy of AMERICAN HONDA MOTOR CO., INC.
