DTC B1847: Power Seat Rear Up-Down Switch Circuit Malfunction

WARNING: This page is about a different variant/trim than selected.

NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).

Clear the DTCs with the HDS.
Turn the ignition switch to LOCK (0) and then back to ON (II).
Operate the rear up-down switch in each direction for more than 1 second.
Check for DTCs with the HDS.
Is DTC B1847 indicated?

YES -Go to step 5.

NO -Intermittent failure, the system is OK at this time. Check for loose or poor connections. ■
Turn the ignition switch to LOCK (0).
Disconnect power seat control unit connector B (40P).
Disconnect the power seat adjustment switch 12P connector.
Check for continuity between body ground and power seat control unit connector B (40P) terminals No. 1, No. 3, and No. 22 individually.

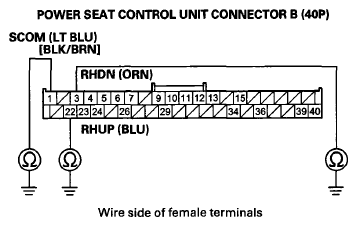

Fig 1: Checking Continuity Between Body Ground And Power Seat Control Unit Connector B (40P) Terminals No. 1, 3 And 22
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair a short to ground in the wire. ■

NO -Go to step 9.
Check for continuity between these power seat control unit connector B (40P) terminals:
- No. 1 and No. 3
- No. 1 and No. 22
- No. 3 and No. 22

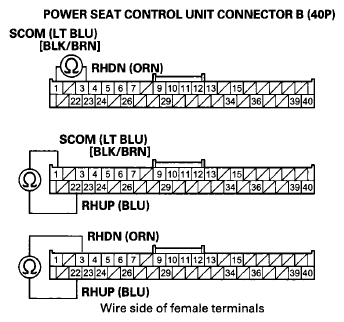

Fig 2: Checking Continuity Between Power Seat Control Unit Connector B (40P) Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair a short in the wire. ■

NO -Go to step 10.
Test the power seat adjustment switch (see POWER SEAT ADJUSTMENT SWITCH TEST/REPLACEMENT ).

Is the switch OK?

YES -Replace the power seat control unit (see POWER SEAT CONTROL UNIT INPUT TEST/REPLACEMENT ). ■

NO -Replace the power seat adjustment switch (see POWER SEAT ADJUSTMENT SWITCH TEST/REPLACEMENT ). ■
