Throttle Body Disassembly/Reassembly

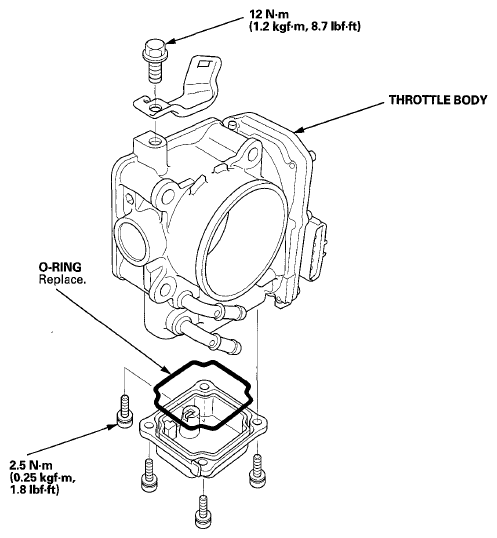

Fig 1: Throttle Body Disassembly/Reassembly With Torque Specifications

G07341788

Courtesy of AMERICAN HONDA MOTOR CO., INC.
