Sealing Bolt Installation
Sealing Bolt Installation
NOTE:
When installing the sealing bolt (A), always use a new washer (B).

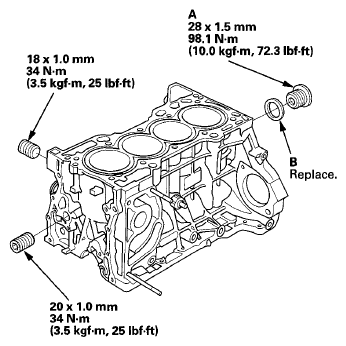

Fig 1: Sealing Bolt And Washer With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
