CKP Pulse Plate Replacement

  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL  ).
  2. Remove the CKP pulse plate (A) from the crankshaft.
    NOTE: Be careful not to damage the journal and the CKP pulse plate.

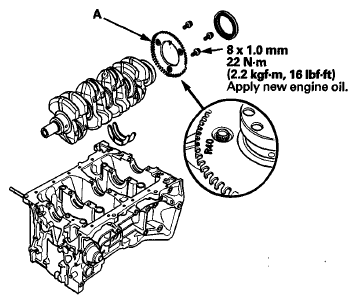

    Fig 1: CKP Pulse Plate In Crankshaft With Torque Specifications
    G07341160Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the CKP pulse plate in the reverse order of removal.
    NOTE: When installing the crankshaft, refer to the crankshaft installation procedure (see CRANKSHAFT INSTALLATION  ).
